Product Details

Description



Features:

• Complies with USB-IF specifications for USB 2.0, the USB Mass Storage Class, and the USB Mass Storage Class
Bulk-Only Transport Specification
• Operates at high (480-Mbps) or full (12-Mbps) speed
• Complies with T13's ATA/ATAPI-6 Draft Specification
• Supports 48-bit addressing for large hard drives
• Supports PIO modes 0, 3, 4, and UDMA modes 2, 4
• Uses one external serial EEPROM containing the USB device serial number, vendor and product identification data,
and device configuration data
• ATA interface IRQ signal support
• Support for a single ATA/ATAPI device configured either as master or slave
• "ATA-Enable" input signal, which three-states all signals on the ATA interface in order to allow sharing of the bus
with another controller (e.g., an IEEE-1394 to ATA bridge chip)
• Support for board-level manufacturing test via USB interface
• 3.3V operation for self-powered devices
• 56-pin SSOP and 56-pin QFN packages.


Application

The CY7C68300A is a high-speed USB 2.0 peripheral device that connects a single ATA or ATAPI storage device to a USB host  using the USB Mass Storage Class protocol.


Specifications

Storage Temperature ........................................................................................................................65°C to +150°C
Ambient Temperature with power supplied.........................................................................................0°C to +70°C
Supply Voltage to Ground Potential ................................................................................................ 0.5V to +4.0V
DC Input Voltage to Any Input Pin .................................................................................................... 5.25V
DC Voltage Applied to Outputs in High-Z State ............................................................................... 0.5V to VCC + 0.5V
Power Dissipation ............................................................................................................................ 936 mW
Static Discharge Voltage..................................................................................................................... > 2000V
Max Output Current per IO port .......................................................................................................... 10 mA


Description

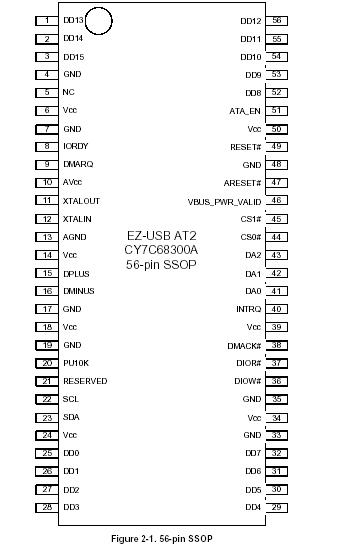

Picture:CY7C68300A
