DG2037

Features: Low Voltage Operation (1.8 V to 5.5 V)Low On-Resistance - r DS(on): 1.0 Fast Switching - 12 ns tONLow Charge Injection - Q INJ: 1 pCLow Power ConsumptionTTL/CMOS CompatibleTSSOP-16 and QFN-16 PackagesApplicationCellular PhonesCommunication SystemsPortable Test EquipmentBattery Operated S...

product image

DG2037 Picture
See larger image
SeekIC No. : 004326058 Detail

DG2037: Features: Low Voltage Operation (1.8 V to 5.5 V)Low On-Resistance - r DS(on): 1.0 Fast Switching - 12 ns tONLow Charge Injection - Q INJ: 1 pCLow Power ConsumptionTTL/CMOS CompatibleTSSOP-16 and QFN...

DG2037 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DG2037
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Low Voltage Operation (1.8 V to 5.5 V)
Low On-Resistance - r DS(on): 1.0
Fast Switching - 12 ns tON
Low Charge Injection - Q INJ: 1 pC
Low Power Consumption
TTL/CMOS Compatible
TSSOP-16 and QFN-16 Packages




Application

Cellular Phones
Communication Systems
Portable Test Equipment
Battery Operated Systems
Sample and Hold Circuits




Pinout

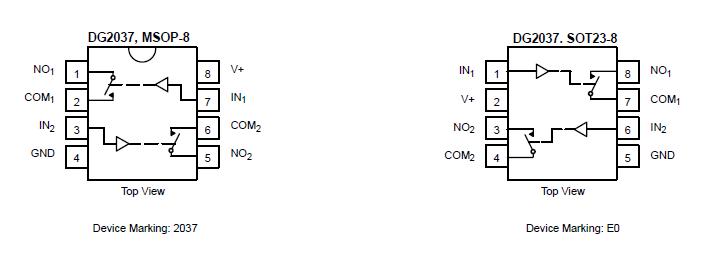

Connection Diagram




Specifications

Reference to GND
V+ . . . . . . . . . . . . . . . . . . . . . . . .. . . . . .. . . . . . . . . . . . . . . . . . . -0.3 to 6.0 V
IN, COM, NC, NOa . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3 V to (V+ + 0.3 V)
Continuous Current (Any terminal) . . . . . . . . . . . . . . . . . . . . . . . . . . . ±50 mA
Peak Current . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . ±200 mA
(Pulsed at 1 ms, 10% duty cycle)
Storage Temperature (D Suffix) . . . . . . . . . . . . . . . . . . . . . . . . . -65 to 150°C
Power Dissipation (Packages)b
MSOP-8c . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 320 mW
SOT23-8c . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . 515 mW
Notes:
a. Signals on NC, NO, or COM or IN exceeding V+ will be clamped by internal diodes. Limit forward diode current to maximum current ratings.
b. All leads welded or soldered to PC Board.
c. Derate 6.5 mW/ above 25




Description

The DG2037/2038/2039 are quad single-pole/single-throw monolithic CMOS analog switch designed for high performance switching of analog signals. Combining low power, fast switching, low on-resistance (rDS(on): 3.0 @2.7 V) and small physical size, theDG2037/2038/2039are ideal for portable and battery powered applications requiring high performance and efficient use of board space.

The DG2037/2038/2039 are built on Vishay Siliconix's new high density low voltage process. An epitaxial layer prevents latchup.
