Part Number: DN8648FBP



MFG: N/A

Package Cooled: QFP

D/C: 08+



Urgent Purchase

DN8648FBP Maximum Ratings


Parameter
Symbol
Rating
Unit
Supply voltage
VCC
0 to 7
V
Output breakdown
V CE (sus)
0 to 30
V
Output current
IO
120 (Per one circuit)
A
Power dissipation
PD
1.8 *
W
Operating ambient temperature
Topr
20 to +75
Storage temperature
Tstg
55 to +150

DN8648FBP Features

* Serial-in and serial-out/parallel-out
* Cascade connection allowed
* Built-in output malfunctioning preventive circuit
* Low current consumption at standby   ICC 100A
* High-breakdown, large current drive type output steps Breakdown voltage : 30V Output current : 120mA (per pin)
* Surface mountable 44-pin flat package (pin pitch : 0.8mm)

DN8648FBP Typical Application

* Driving of the thermal heads
* Driving of the relays, LEDs, solenoids, etc.

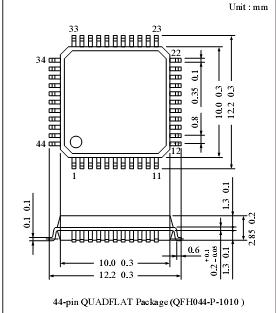

DN8648FBP Connection Diagram

DN8648FBP Connection Diagram

DN8648FBP datasheet

DN8648FBP
PDF/DataSheet Download

  • Datasheet: DN8648FBP
  • File Size: 46415 KB
  • Manufacturer: PANASONIC [Panasonic Semiconductor]
  • Click here to Download
