General Description
DS9639A General Description
The DS9639A is a Schottky dual differential line receiver which has been specifically designed to satisfy the requirements of EIA Standards RS-422, RS-423 and RS-232C. In addition, the DS9639A satisfies the requirements of MIL-STD 188-114 and is compatible with the International Standard CCITT recommendations. The DS9639A is suitable for use as a line receiver in digital data systems, using either single ended or differential, unipolar or bipolar transmission. It requires a single 5.0V power supply and has Schottky TTL compatible outputs. The DS9639A has an operational input common mode range of ±7.0V either differentially or to ground.
DS9639A Maximum Ratings
If Military/Aerospace specified devices are required,please contact the National Semiconductor Sales Office/Distributors for availability and specifications.
Storage Temperature Range −65°C to +175°C
Operating Temperature Range 0°C to +70°C
Lead Temperature
Molded DIP (soldering, 10 sec.) 265°C
VCC Lead Potential to Ground −0.5V to +7.0V
Input Potential to Ground Lead ±25V
Differential Input Voltage ±25V
Output Differential to Ground Lead −0.5V to 5.5V
Output Sink Current 50 mA
Maximum Power Dissipation (Note 1) at 25°C
Molded Package 930 mW
Storage Temperature Range −65°C to +175°C
Operating Temperature Range 0°C to +70°C
Lead Temperature
Molded DIP (soldering, 10 sec.) 265°C
VCC Lead Potential to Ground −0.5V to +7.0V
Input Potential to Ground Lead ±25V
Differential Input Voltage ±25V
Output Differential to Ground Lead −0.5V to 5.5V
Output Sink Current 50 mA
Maximum Power Dissipation (Note 1) at 25°C
Molded Package 930 mW
DS9639A Features
Dual channel
Single 5.0V supply
Satisfies EIA Standards RS-422, RS-423 and RS-232C
Built-in ±35 mV hysteresis
High input common mode voltage range
High input impedance
TTL compatible outputs
Schottky technology
Single 5.0V supply
Satisfies EIA Standards RS-422, RS-423 and RS-232C
Built-in ±35 mV hysteresis
High input common mode voltage range
High input impedance
TTL compatible outputs
Schottky technology
DS9639A
PDF/DataSheet Download
- Datasheet: DS9639A
- File Size: 125136 KB
- Manufacturer:
- Click here to Download
- ·DS9
- Linear
- 2-Phase DC/DC Controller Reduces Capacitance and Increases Battery Life in Portable Applications
- 292285 KB
- ·DS9000
- Dallas
- Bytewide Cable Harness
- 12571 KB
- ·DS9002
- Dallas
- Cartridge Housing
- 12446 KB
- ·DS9003
- Dallas
- Cartridge Proto Board
- 12491 KB
- ·DS9005
- Dallas
- Eurocard Enclosure
- 15728 KB
- ·DS9006
- Dallas
- SIP Stik Motherboard
- 15739 KB
- ·DS9006K
- Dallas
- SIP Stik Prototyping Kit
- 15277 KB
- ·DS9034PC
- DALLAS [Dallas Semiconducotr]
- PowerCap
- 116812 KB
DS9639A Relative Products
DS9639
The DS9639 is a schottky dual differential line receiver. It is suitable for use as a line receiver in digital data systems, using either single ended or differential, unipolar or bipolar transmission. Features of the DS9639 are:(1)dual channel;(2)single 5....
DS9638CMX/NOPB
IC DRIVER DUAL HS DIFF 8-SOIC
DS9638CM/NOPB
IC DRIVER DUAL HS DIFF 8-SOIC
DS9638
The DS9638 is a Schottky, TTL compatible, dual differential line driver designed specifically to meet the EIA Standard RS-422 specifications. It is designed to provide unipolar differential drive to twisted pair or parallel wire transmission lines. The input...
DS9637ACMX/NOPB
IC RCVR DUAL EIA-422/423 8-SOIC
DS9637ACM/NOPB

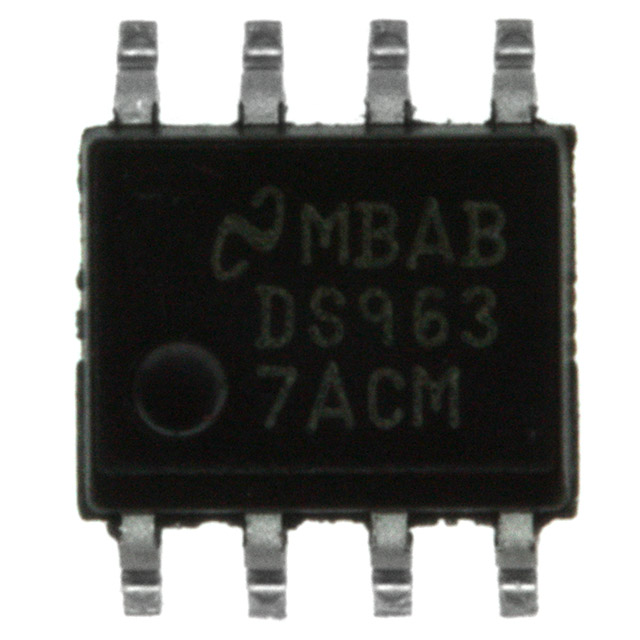

The DS9637ACM/NOPB is one member of the DS9637A series.The DS9637A is a schottky dual differential line receiver which has been specifically designed to satisfy the requirements of EIA Standards RS-422 and RS-423.In addition,the DS9637A satisfies the require...
