Purchase E102, In-stock E102 From SeekIC.
MFG:SEMITEC Package Cooled:DO-35 D/C:08+
Part Number: E102
MFG: SEMITEC
Package Cooled: DO-35
D/C: 08+
Description: Bulk Metal® foil (BMF) technology outperforms all other resistor technologies available...
- Table of contents:
E102
-
Suppliers
DataSheet
General Description
E102 General Description
Bulk Metal® foil (BMF) technology outperforms all other resistor technologies available today for applications that require high precision and high stability.
This technology has been pioneered and developed by VISHAY, and products based on this technology are the most suitable for a wide range of applications.
BMF technology allows us to produce customer orientated products, designed to satisfy challenging and specific technical requirements.
The E102C (0.150" lead spacing) and E102J (0.200" lead spacing) extends the range of the high precision aerospace and instrumentation standard S102C/J from 150K to 300K.
Our application engineering department is available to advise and to make recommendations. For non-standard technical requirements and special applications, please contact us.
E102 Features
• Temperature coefficient of resistance (TCR): - 55 °C to + 125 °C, + 25 °C ref.2 ppm/°C typical
• Rated power: to 0.3 W at + 125 °C
• Tolerance: ± 0.005 %
• Load life stability: to ± 0.005 % at 70 °C, 2000 h at rated power
• Resistance range: 150 k to 300 k (higher and lower values of resistance are available)
• Electrostatic discharge (ESD) above 25 000 V
• Non inductive, non capacitive design
• Rise time: 1 ns without ringing
• Current noise: < - 40 dB
• Thermal EMF: 0.05 V/°C typical
• Voltage coefficient < 0.1 ppm/V
• Low inductance: < 0.08 H typical
• Non hot spot design
• Terminal finishes available: lead (Pb)-free tin/lead alloy
• Matched sets are available on request (TCR tracking: to 0.5 ppm/°C)
• For better TCR and PCR performances please review the E102Z datasheet
• Rated power: to 0.3 W at + 125 °C
• Tolerance: ± 0.005 %
• Load life stability: to ± 0.005 % at 70 °C, 2000 h at rated power
• Resistance range: 150 k to 300 k (higher and lower values of resistance are available)
• Electrostatic discharge (ESD) above 25 000 V
• Non inductive, non capacitive design
• Rise time: 1 ns without ringing
• Current noise: < - 40 dB
• Thermal EMF: 0.05 V/°C typical
• Voltage coefficient < 0.1 ppm/V
• Low inductance: < 0.08 H typical
• Non hot spot design
• Terminal finishes available: lead (Pb)-free tin/lead alloy
• Matched sets are available on request (TCR tracking: to 0.5 ppm/°C)
• For better TCR and PCR performances please review the E102Z datasheet
E102
PDF/DataSheet Download
- Datasheet: E102
- File Size: 1301064 KB
- Manufacturer: GILWAY [Gilway Technical Lamp]
- Click here to Download
- ·E100
- GILWAY [Gilway Technical Lamp]
- Miniature LEDs
- 1301064 KB
- ·E1000
- GILWAY [Gilway Technical Lamp]
- Engineering Catalog 169
- 8262051 KB
- ·E1001
- GILWAY [Gilway Technical Lamp]
- Engineering Catalog 169
- 8262051 KB
- ·E1003
- GILWAY [Gilway Technical Lamp]
- Engineering Catalog 169
- 8262051 KB
- ·E1004
- GILWAY [Gilway Technical Lamp]
- Engineering Catalog 169
- 8262051 KB
- ·E1008
- GILWAY [Gilway Technical Lamp]
- SMT Bright White LEDs
- 1575068 KB
- ·E1010
- GILWAY [Gilway Technical Lamp]
- Light Bar
- 187927 KB
- ·E1011
- GILWAY [Gilway Technical Lamp]
- Light Bar
- 187927 KB
E102 Relative Products

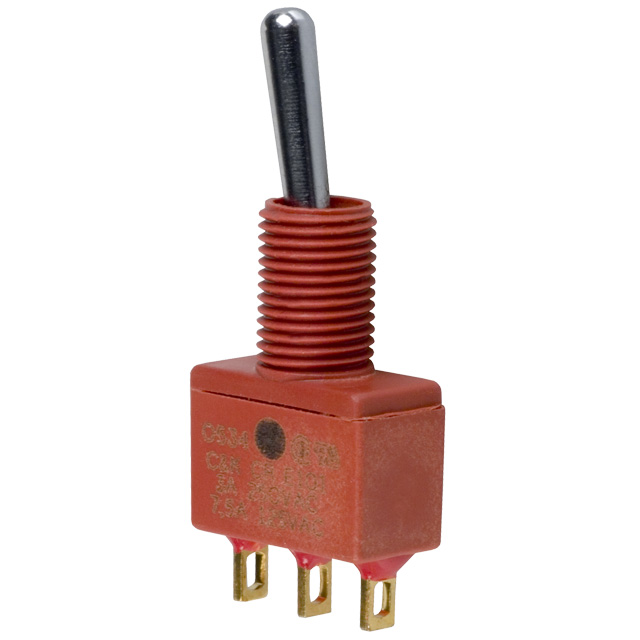

E101SYZQE
