Product Details

Description



Features:

* 400MHz gain-bandwidth product
* Gain-of-2 stable
* Ultra low video distortion = 0.01%/0.015° @NTSC/PAL
* Conventional voltage-feedback topology
* Low offset voltage = 200V
* Low bias current = 2A
* Low offset current = 0.1A
* Output current = 50mA over temperature
* Fast settling = 13ns to 0.1%
* Low distortion = -55dB HD2, -70dB HD3 @20MHz, 2V , PPAV= +2


Application

* High resolution video
* Active filters/integrators
* High-speed signal processing
* ADC/DAC buffers
* Pulse/RF amplifiers
* Pin diode receivers
* Log amplifiers
* Photo multiplier amplifiers
* High speed sample-and-holds

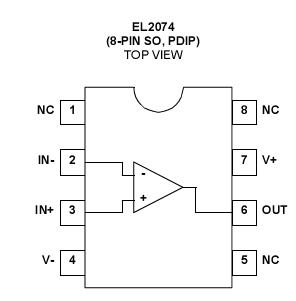

Pinout

Connection Diagram


Specifications

Supply Voltage (VS ). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±7V
Output Current Output is short-circuit protected to ground, however,
maximum reliability is obtained if IOUT  does not exceed 70mA.
Common-Mode Input. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±VS
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5V
hermal Resistance (PDIP) . . . . . . . . . . . . . . . . . . . . . . JA = 95°C/W
Thermal Resistance (PDIP) . . . . . . . . . . . . . . . . . . . . JA = 175°C/W
Maximum Die Temperature. . . . . . . . . . . . . . . . . . . . . . . . . . +125°C
Storage Temperature. . . . . . . . . . . . . . . . . . . . . . -65°C to +150°C
Lead Temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .260°C
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See Curves


Description

The EL2074 is a precision voltage-feedback amplifier featuring a 400MHz gain-bandwidth product, fast settling time, excellent differential gain and differential phase perfor-mance, and a minimum of 50mA output current drive over temperature.

The EL2074 is gain-of-2 stable with a -3dB bandwidth of 400MHz at A  = +2. It has a very low 200V of input offset Vvoltage, only 2A of input bias current, and a fully symmetri-cal differential input. Like all voltage-feedback operational amplifiers, the EL2074 allows the use of reactive or non-lin-ear components in the feedback loop. This combination of  speed and versatility makes the EL2074 the ideal choice for all op-amp applications at a noise gain of 2 or greater requir-ing high speed and precision, including active filters, integrators, sample-and-holds, and log amps. The low distor-tion, high output current, and fast settling makes the EL2074 an ideal amplifier for signal-processing and digitizing systems.
