EL4501

The EL4501 is a highly-integrated  Video Front End (VFE) incorporating  all of the key signal conditioning functions for analog video signals. It provides a flexible front- end interface for analog or analog/digital video sub-systems.  The VFE contains a high bandwidth DC-restore, an  advanced sync separator and a data slicer with an  adjustable threshold, configurable output and power-down  mode.

The VFE performs restoration of the DC level (blanking  evel) of a video signal and the recovery of all signal timing  necessary for synchronization and control. Additionally, data  embedded in the active video or VBI regions of the video  signal may be extracted using the flexible data slicer  ncorporated into the VFE. The advanced sync separator  exhibits excellent noise immunity by incorporating a digital  brick wall filter and signal qualification algorithm. The DC- restored video amplifier is unity gain stable with an unloaded  -3dB bandwidth of 100MHz. The input common mode  voltage range extends from the negative rail to within 1.5V of the positive rail. When driving a 75? double terminated coaxial cable, the amplifier can drive to within 150mV of either rail. With 200V/s slew rate, the amplifier is well suited for composite and component video applications.

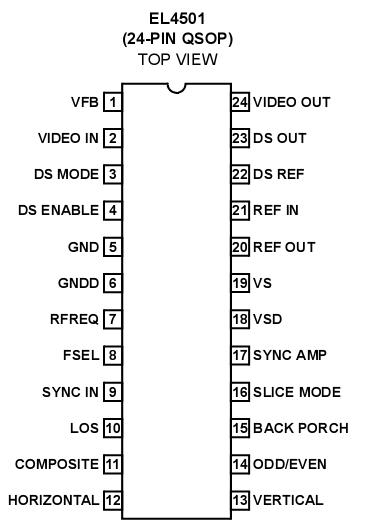

The VFE operates from a single 5V supply from -40°C to +85°C and is available in a reduced footprint 24-pin QSOP package.
