Purchase EL4501C - Preliminary, In-stock EL4501C - Preliminary From SeekIC.
Part Number: EL4501C - Preliminary
Description: The EL4501C Video Front End (VFE) is an integrated solution that provides the key analog signal condit...
- Table of contents:
EL4501C - Preliminary
-
Suppliers
DataSheet
General Description
EL4501C - Preliminary General Description
The EL4501C Video Front End (VFE) is an integrated solution that provides the key analog signal conditioning functions for analog video signals. It forms the front end interface for either an analog or ana-log/digital video system. The VFE contains a high bandwidth DC Restore, a sophisticated Sync Separator, and a Data Slicer for embed- ded data recovery.
The VFE will perform the restoration of the DC reference level (blanking level) and the extraction of all of the necessary timing sig-nals needed for synchronization and control. The sync separator is designed for very good noise immunity by incorporating a signal qual- ification scheme and internal brick wall filter. A data slicer is also included to help decode data embedded in the active video or VBI areas of the signal.
The VFE operates from a single 5 volt supply and is available in a small 24 pin QSOP package that takes only 0.08in2 (54mm2 ) of board area, as well as a standard 24 pin SOIC.
EL4501C - Preliminary Maximum Ratings
Values beyond absolute maximum ratings can cause the device to be pre-
maturely damaged. Absolute maximum ratings are stress ratings only and
functional device operation is not implied.
Supply Voltage (VS to GND) +6V
Input Voltage GND - 0.3V, VS +0.3V
Storage Temperature Range -65°C to +150°C
Ambient Operating Temperature -40°C to +85°C
Operating Junction Temperature 125°C
Power Dissipation See Curves
maturely damaged. Absolute maximum ratings are stress ratings only and
functional device operation is not implied.
Supply Voltage (VS to GND) +6V
Input Voltage GND - 0.3V, VS +0.3V
Storage Temperature Range -65°C to +150°C
Ambient Operating Temperature -40°C to +85°C
Operating Junction Temperature 125°C
Power Dissipation See Curves
EL4501C - Preliminary Features
* DC restore and sync separator
* Wideband (100MHz) DC restore
* Advanced sync separator
* Programmable data slicer
* Single 5 volt operation
* Differential Gain = 0.1%
* Differential Phase = 0.1°
* Low power (<75mW)
* Wideband (100MHz) DC restore
* Advanced sync separator
* Programmable data slicer
* Single 5 volt operation
* Differential Gain = 0.1%
* Differential Phase = 0.1°
* Low power (<75mW)
EL4501C - Preliminary Typical Application
* Video Capture & Editing
* Video Projectors
* Set Top Boxes
* Security Video
* Embedded data recovery
* Video Projectors
* Set Top Boxes
* Security Video
* Embedded data recovery

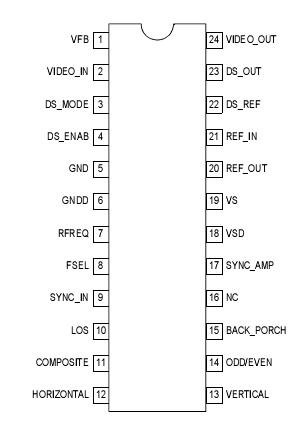

EL4501C - Preliminary Connection Diagram
