EL4543

Features:

* Fully differential inputs, outputs, and feedback
* 350MHz -3dB bandwidth
* 1200V/s slew rate
* -75dB distortion at 5MHz
* Single 5V to 12V operation
* 50mA minimum output current
* Low power - 36mA total typical supply current
* Pb-free plus anneal available (RoHS compliant)




Application

* Twisted-pair drivers
* Differential line drivers
* VGA over twisted-pair
* Transmission of analog signals in a noisy environment

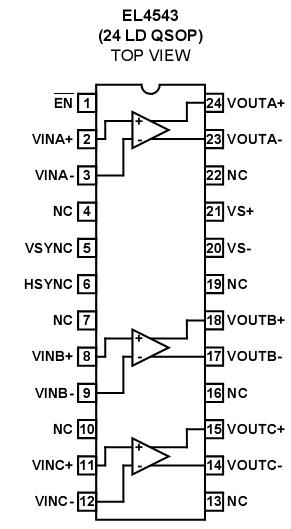

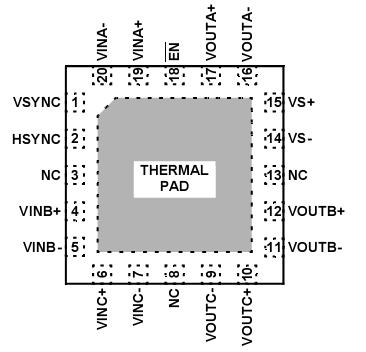

Pinout






Specifications

Supply Voltage (V_S + & V_S-). . . . . . . . . . . . . . . . . . . . . . . . . . . +12V
Maximum Output Continuous Current. . . . . . . . . . . . . . . . . . ±70mA
Storage Temperature Range . . . . . . . . . . . . . . . .-65°C to +150°C
Operating Junction Temperature . . . . . . . . . . . . . . . . . . . . .+135°C
Ambient Operating Temperature . . . . . . . . . . . . . ..-40°C to +85°C
V_IN +, V_INB . . . . . . . . . . . . . . V_S - + 0.8V (min) to V_S+ - 0.8V (max)
V_IN - - V_INB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±5V





Description

The EL4543 is a high bandwidth triple differential amplifier with integrated encoding of video sync signals. The inputs are suitable for handling high speed video or other communications signals in either single-ended or differential form, and the common-mode input range extends all the way to the negative rail enabling ground-referenced signalling in single supply applications. The high bandwidth enables differential signalling onto standard twisted-pair or coax with very low harmonic distortion, while internal feedback ensures balanced gain and phase at the outputs reducing radiated EMI and harmonics. Embedded logic encodes standard video horizontal and vertical sync signals onto the common mode of the twisted pair(s), transmitting this additional information without the requirement for additional buffers or transmission lines. The EL4543 enables significant system cost savings when compared with discrete line driver alternatives. The EL4543 is available in both a 24 Ld QSOP package and a 20 Ld QFN package and is specified for operation over the -40C to +85C temperature range.
