Position: Home > Datasheet list > EL7 Series > Index E > EL7155CSZ-T13
Electronica China

Purchase EL7155CSZ-T13, In-stock EL7155CSZ-T13 From SeekIC.

MFG:Intersil  Category:Integrated Circuits (ICs)

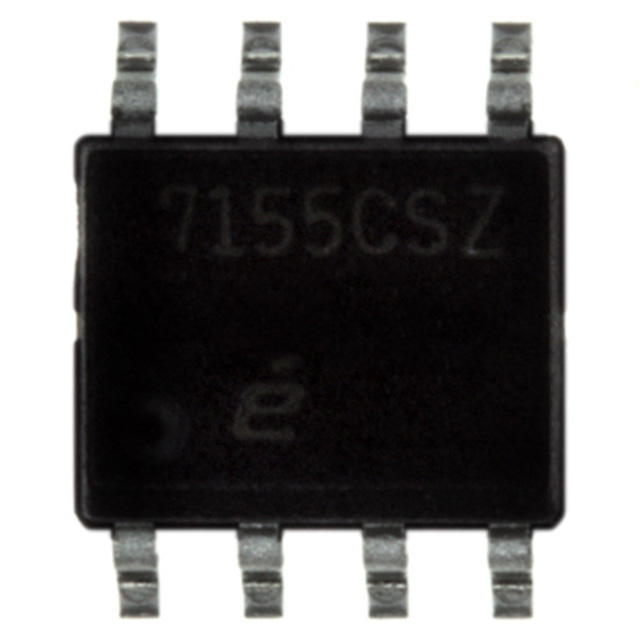

EL7155CSZ-T13 Product Image

EL7 Series Datasheet download

Five Points

Part Number: EL7155CSZ-T13

Category: Integrated Circuits (ICs)

MFG: Intersil





Descriptions: IC PIN DRIVER 40MHZ 3ST 8-SOIC

Price Break

2500

Unit Price

2.67000

Extended Price

6675.00

(All prices are in USD) Prices for reference only
Urgent Purchase

EL7155CSZ-T13 General Description

IC PIN DRIVER 40MHZ 3ST 8-SOIC

EL7155CSZ-T13 Parameters

Technical/Catalog InformationEL7155CSZ-T13
VendorIntersil
CategoryIntegrated Circuits (ICs)
Package / Case8-SOIC (3.9mm Width)
Mounting TypeSurface Mount
TypeHigh Side/Low Side Driver
Voltage - Supply4.5 V ~ 16.5 V
On-State Resistance2.7 Ohm
Current - Output / Channel200mA
Current - Peak Output3.5A
PackagingTape & Reel (TR)
Input TypeNon-Inverting
Number of Outputs2
Operating Temperature-40°C ~ 85°C
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names EL7155CSZ T13
EL7155CSZT13

EL7155CSZ-T13 datasheet

EL7155CSZ-T13
PDF/DataSheet Download
