EL7585

Features: • 3.5A current limit FET options• 3V to 5V input• Up to 20V boost out• 1% regulation on all outputs• VBOOST/VLOGIC-VOFF-VON or VLOGIC-VOFF-VBOOST -VON sequence control• Programmable sequence delay• Fully fault protected• Thermal shutdown...

product image

EL7585 Picture
See larger image
SeekIC No. : 004335682 Detail

EL7585: Features: • 3.5A current limit FET options• 3V to 5V input• Up to 20V boost out• 1% regulation on all outputs• VBOOST/VLOGIC-VOFF-VON or VLOGIC-VOFF-VBOOST -VON sequenc...

EL7585 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EL7585
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/6

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 3.5A current limit FET options
• 3V to 5V input
• Up to 20V boost out
• 1% regulation on all outputs
• VBOOST/VLOGIC-VOFF-VON or VLOGIC-VOFF-VBOOST -VON sequence control
• Programmable sequence delay
• Fully fault protected
• Thermal shutdown
• Internal soft-start
• 20-pin QFN packages
• Pb-Free plus anneal available (RoHS Compliant)


Application

• LCD monitors (15"+)
• LCD-TV (up to 40"+)
• Notebook displays (up to 16")
• Industrial/medical LCD displays

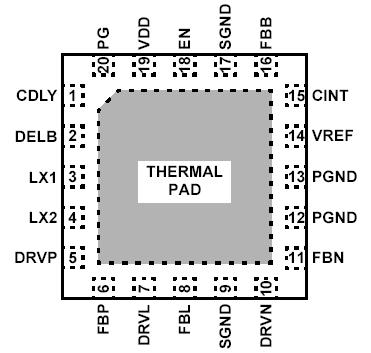

Pinout

Connection Diagram


Specifications

VDELB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18V
VDRVP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36V
VDRVN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -20V
VDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.5V
VLX. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  24V
VDRVL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  6.5V
Storage Temperature . . . . . . . . . . . . . . -65°C to +150°C
Ambient Operating Temperature . . . . . . .-40°C to +85°C
Power Dissipation . . . . . . . . . . . . . . . . . . . . . .  See Curves
Maximum continuous junction temperature. . . . . . . 125°C


Description

The EL7585 represents a multiple output regulators for use in all large panel, TFT-LCD applications. It features a single boost converter with integrated 3.5A FET, two positive LDOs for VON and VLOGIC generation, and a single negative LDO for VOFF generation. The boost converter can be programmed to operate in either P-mode or PI-mode for improved load regulation.

The EL7585 also integrates fault protection for all four channels. Once a fault is detected, the device is latched off until the input supply or EN is cycled. This device also features an integrated start-up sequence for VBOOST, VOFF, then VON or for VOFF, VBOOST, and VON sequencing. The latter requires a single external transistor. The timing of the start-up sequence is set using an external capacitor.

The EL7585 is specified for operation over the -40°C to +85°C temperature range.
