Product Details

Description



Features:

` Fast access time: 45/55/70ns
` Low power consumption:
  Operating current:
  23/20/18mA (TYP.)
  Standby current: -L/-LL version
  10/1A (TYP.)
` Single 2.7V ~ 3.6V power supply
` All inputs and outputs TTL compatible
` Fully static operation
` Tri-state output
` Data byte control :
  LB# (DQ0 ~ DQ7)
  UB# (DQ8 ~ DQ15)
` Data retention voltage: 1.5V (MIN.)
` Package:
  44-pin 400 mil TSOP-II
  48-ball 6mm x 8mm TFBGA


Pinout

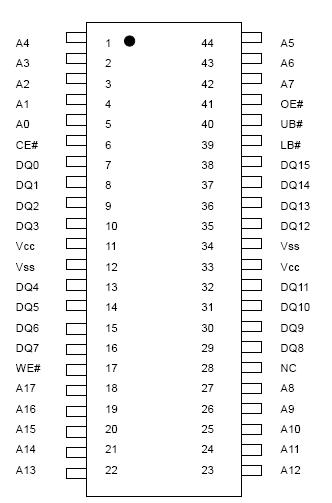

Connection Diagram


Specifications

PARAMETER SYMBOL RATING UNIT
Terminal Voltage with Respect to Vss VTERM -0.5 to 4.6 V
Operating Temperature TA 0 to 70(C grade) °C
-20 to 80(E grade)
-40 to 85(I grade)
Storage Temperature TSTG -65 to 150 °C
Power Dissipation PD
 PD 1 W
DC Output Current IOUT 50 mA
Soldering Temperature (under 10 sec) TSOLDER 260 °C



Description

The EM6164K600V is a 1,048,576-bit low power CMOS static random access memory organized as 65,536 words by 16 bits. It is fabricated using very high performance, high reliability CMOS technology. Its standby current is stable within the range of operating temperature.

The EM6164K600V is well designed for low power application, and particularly well suited for battery back-up nonvolatile memory application.

The EM6164K600V operates from a single power supply of 2.7V ~ 3.6V and all inputs and outputs are fully TTL compatible
