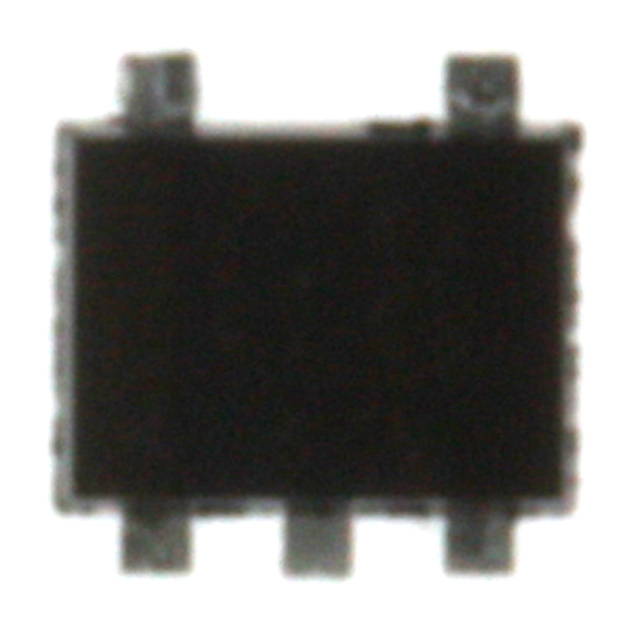

Purchase EMG9, In-stock EMG9 From SeekIC.
MFG:ROHM Package Cooled:SOT-563 D/C:05+nopb
- Table of contents:
EMG9
-
Suppliers
DataSheet
General Description
EMG9 Maximum Ratings
| Parameter | Symbol | Limits | Unit | |
| Supply voltage | VCC | 50 | V | |
| Input voltage | VIN | 40 | V | |
| -10 | ||||
| Output current | IO | 50 | mA | |
| IC (MAX.) | 100 | |||
| Power dissipation |
EMG9,UMG9N | Pd | 150 (TOTAL) | mA *1 *2 |
| FMA9A | 300 (TOTAL) | |||
| Junction temperature | Tj | 150 | °C | |
| Storage temperature | Tstg | -50~+150 | °C | |
2 200mW per element must not be exceeded.
EMG9 Features
1) Two DTC114E in a EMT or UMT or SMT package.
2) Mounting cost and area can be cut in half.
2) Mounting cost and area can be cut in half.
EMG9
