ES51986

Features:

6000 count display
Full automatic measurement
Voltage measurement
Current measurement
Resistor measurement
Capacitor measurement (Auto range: 6n to 6mF)
60MHz Frequency counter
Range change function
Data hold function
MAX/MIN function
Diode measurement
ADP mode with external reference voltage
Serial data output (RS232 format)
Auto power off (10 mins) and re-power on
Low battery detect (3V and 9V)
3V DC power supply
Back light function


Application

Digital Multimeter

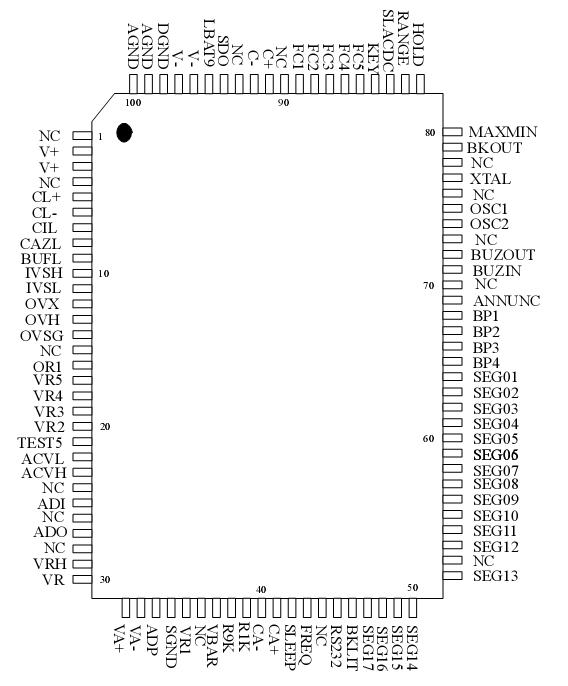

Pinout




Specifications

Characteristic	Rating
Supply Voltage (V- to AGND)	-4V
Analog Input Voltage	V- -0.6 to V+ +0.6
V+	V+ (AGND/DGND+0.5V)
AGND/DGND	AGND/DGND (V- -0.5V)
Digital Input	V- -0.6 to DGND +0.6
Power Dissipation. Flat Package	500mW
Operating Temperature	0 to 70
Storage Temperature	-25 to 125

Description

ES51986 is an integrated analog-to-digital Converter(ADC) with 6000 counts LCD display ,automatic range selection, and 3V DC power supply. Automatic range selection is provided for voltage(AC/DC) measurement, resistor measurement, current measurement, capacitor measurement, frequency counter. Expensive and bulky mechanical range switches are not required. Other features include data holding, MAX and MIN holding, diode measurement, temperature measurement, continuity checking, low battery detection, auto- power off, re-power on, and RS232 data output.
