ESDA6V1U1

Clamping Voltage :
Polarity : Unidirectional
Minimum Operating Temperature : - 55 C
Maximum Operating Temperature : + 125 C
Capacitance : 100 pF
Channels : 6 Channels
Operating Voltage : 5 V
Breakdown Voltage : 7.2 V
Packaging : Tube
Package / Case : SO-8
Series : ESDA6V1U1


Features:

·6 UNIDIRECTIONAL TRANSILÔ FUNCTIONS
·LOW LEAKAGE CURRENT: IR max. < 2 mA
·200 W PEAK PULSE POWER (8/20 ms)


Application

Where transient overvoltage protection in ESD sensitive equipment is required, such as :
- COMPUTERS
- PRINTERS
- COMMUNICATION SYSTEMS
- GSM HANDSETS AND ACCESSORIES
- CAR RADIO
It is particulary recommended for parallel port protection where the line interface withstands only 2 kV ESD surge.

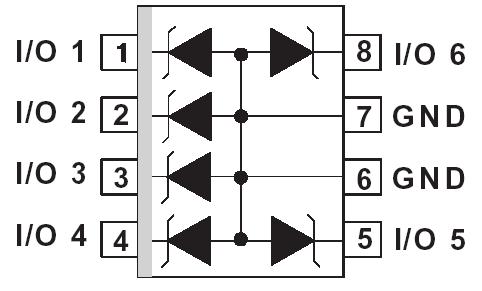

Pinout




Specifications

Symbol	Parameter	Value	Unit
VPP	Electrostatic discharge MIL STD 883C - Method 3015-6	25	kV
PPP	Peak pulse power (8/20ms)	200	W
Tstg Tj	Storage temperature range Maximum junction temperature	- 55 to + 150 125	°C
TL	Maximum lead temperature for soldering during 10s	260	°C

Description

The ESDA6V1U1 is a monolithic voltage suppressor designed to protect components which are connected to data and transmission lines against ESD.

ESDA6V1U1 clamps the voltage just above the logic level supply for positive transients, and to a diode drop below ground for negative transients.


Parameters:

Technical/Catalog Information	ESDA6V1U1
Vendor	STMicroelectronics
Category	Circuit Protection
Package / Case	8-SOIC (3.9mm Width)
Packaging	Tube
Polarization	6 Channel Array - Unidirectional
Power (Watts)	200W
Voltage - Reverse Standoff (Typ)	5V
Voltage - Breakdown	6.1V
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ESDA6V1U1 ESDA6V1U1 497 3403 5 ND 49734035ND 497-3403-5
