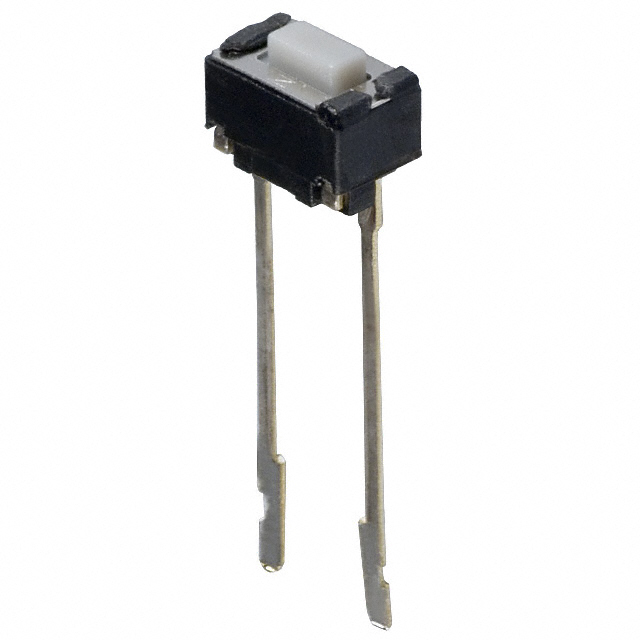

Tactile & Jog Switches 6.0x3.5mm radial ta Light Touch Switch
EVQ-PJG05Q: Tactile & Jog Switches 6.0x3.5mm radial ta Light Touch Switch
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
| Current Rating : | 50 mA | Voltage Rating DC : | 12 V |
| Illumination : | Not Illuminated |
| Technical/Catalog Information | EVQ-PJG05Q |
| Vendor | Panasonic - ECG (VA) |
| Category | Switches |
| Actuator Type | Standard |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.05A @ 12VDC |
| Mounting Type | Through Hole |
| Operating Force | 100gf |
| Orientation | Vertical |
| Outline | 6mm x 3.50mm |
| Switch Function | Off-Mom |
| Illumination | Non-Illuminated |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | EVQ PJG05Q EVQPJG05Q P12237SCT ND P12237SCTND P12237SCT |
