Product Details

Quick Details

Type :	3 Phase BLDC Motor Driver	Operating Supply Voltage :	15 V
Supply Current :	1.3 A	Mounting Style :	SMD/SMT
Package / Case :	SSOP-28	Packaging :	Tube

Description

Product :
Mounting Style : SMD/SMT
Packaging : Tube
Operating Supply Voltage : 15 V
Package / Case : SSOP-28
Supply Current : 1.3 A
Type : 3 Phase BLDC Motor Driver

Features:

• 3-phase, full-wave, linear BLDC motor driver
• Power save at stop mode
• Built-in current limiter
• Built-in TSD (thermal shutdown) circuit
• Built-in 3X and 1X hall FG output
• Built-in hall bias circuit
• Built-in rotational direction detector
• Built-in reverse rotation preventer
• Built-in short braker
• Corresponds to 5 V DSP

Application

• Compact disk ROM (CD-ROM) spindle motor
• Compact disk RW (CD-RW) spindle motor
• Digital video disk ROM (DVD-ROM) spindle motor
• Digital video disk RAM (DVD-RAM) spindle motor
• Digital video disk Player (DVDP) spindle motor
• Other compact disk media spindle motor
• Other 3-phase BLDC motor

Pinout

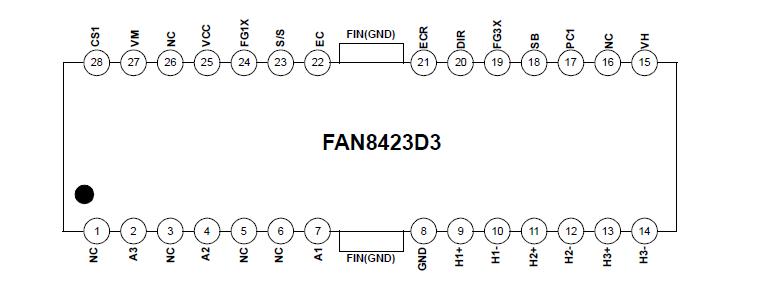

Connection Diagram

Specifications

Parameter	Symbol	Value	Unit
Maximum supply voltage (Signal)	V_CCmax	7	V
Maximum supply voltage (Motor)	V_Mmax	15	V
Power dissipation	P_D	2.5^note	W
Maximum output current	I_Omax	1.3	A
Operating temperature range	T_OPR	−25 ~ +75	°C
Storage temperature range	T_STG	−55 ~ +150	°C

NOTE:
1. When mounted on a 76.2mm × 114mm × 1.57mm PCB (Phenolic resin material).
2. Power dissipation reduces 16.6mW/°C for using above Ta = 25°C
3. Do not exceed PD and SOA (Safe operating area).

Description

The FAN8423D3 is a monolithic IC, suitable for a 3-phase spindle motor driver of a CD-media system.
