General Description
FDFMA2P853 General Description
This device is designed specifically as a single package solution for the battery charge switch in cellular handset and other ultra-portable applications. It features a MOSFET with low on-state resistance and an independently connected low forward voltage schottky diode for minimum conduction losses.
The MicroFET 2x2 package offers exceptional thermal performance for it's physical size and is well suited to linear mode applications.
FDFMA2P853 Maximum Ratings
|
Symbol |
Parameter |
Ratings |
Units | |
| VDSS VGSS ID VRRM IO PD TJ, TSTG |
MOSFET Drain-Source Voltage MOSFET Gate-Source Voltage Drain Current -Continuous -Pulsed Schottky Repetitive Peak Reverse voltage Schottky Average Forward Current Power dissipation for Single Operation Power dissipation for Single Operation Operating and Storage Junction Temperature Range |
(Note 1a) (Note 1a) (Note 1a) (Note 1b) |
-20 ±8 -2.2 -6 20 1 1.4 0.7 -55 to +150 |
V V A V A W oC |
FDFMA2P853 Features
MOSFET:
· -3.0 A, -20V. RDS(ON) = 120 mΩ @ VGS = -4.5 V
RDS(ON) = 160 mΩ @ VGS = -2.5 V
RDS(ON) = 240 mΩ @ VGS = -1.8 V
· Low Profile - 0.8 mm maximun - in the new package
MicroFET 2x2 mm
Schottky:
· VF < 0.46 V @ 500 mA
· -3.0 A, -20V. RDS(ON) = 120 mΩ @ VGS = -4.5 V
RDS(ON) = 160 mΩ @ VGS = -2.5 V
RDS(ON) = 240 mΩ @ VGS = -1.8 V
· Low Profile - 0.8 mm maximun - in the new package
MicroFET 2x2 mm
Schottky:
· VF < 0.46 V @ 500 mA
FDFMA2P853
PDF/DataSheet Download
- Datasheet: FDFMA2P853
- File Size: 314460 KB
- Manufacturer: FAIRCHILD [Fairchild Semiconductor]
- Click here to Download
- ·FDF5680
- FAIRCHILD [Fairchild Semiconductor]
- 60V N-Channel PowerTrench⑩ MOSFET
- 451513 KB
- ·FDF60BA50
- SANREX [SanRex Corporation]
- DIODE MODULE F.R.D
- 101844 KB
- ·FDF60BA60
- SANREX [SanRex Corporation]
- DIODE MODULE F.R.D
- 101844 KB
- ·FDFC3N108
- FAIRCHILD [Fairchild Semiconductor]
- N-Channel 1.8V Specified PowerTrench MOSFET with Schottky Diode
- 114170 KB
- ·FDFM2N111
- FAIRCHILD [Fairchild Semiconductor]
- Integrated N-Channel PowerTrench MOSFET and Schottky Diode
- 296557 KB
- ·FDFM2P110
- FAIRCHILD [Fairchild Semiconductor]
- Integrated P-Channel PowerTrench MOSFET and Schottky Diode
- 533559 KB
- ·FDFMC2P120
- FAIRCHILD [Fairchild Semiconductor]
- Integrated P-Channel PowerTrench MOSFET and Schottky Diode
- 126925 KB
- ·FDFS2P102
- FAIRCHILD [Fairchild Semiconductor]
- FETKEY P-Channel MOSFET with Schottky Diode
- 89166 KB
FDFMA2P853 Relative Products

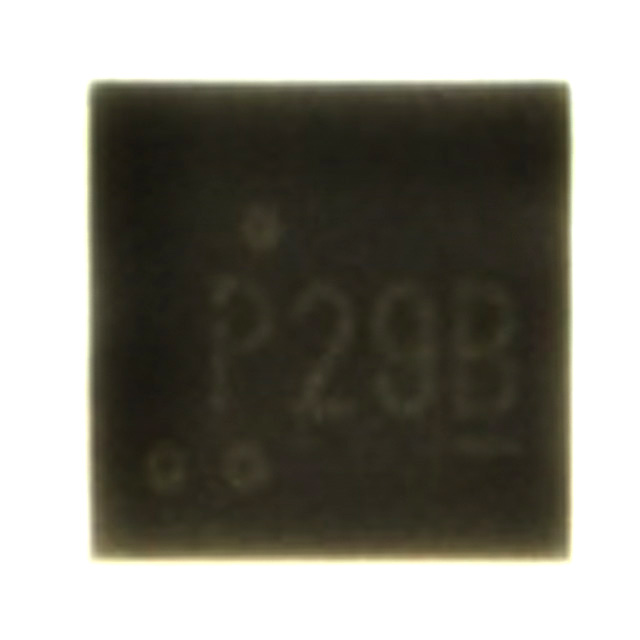

FDFMA2P029Z
