FDG6313N

MOSFET 25V Dual N-Ch Digital

product image

FDG6313N Picture
SeekIC No. : 00164009 Detail

FDG6313N: MOSFET 25V Dual N-Ch Digital

floor Price/Ceiling Price

Part Number:
FDG6313N
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/24

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Transistor Polarity : N-Channel Drain-Source Breakdown Voltage : 25 V
Gate-Source Breakdown Voltage : 8 V Continuous Drain Current : 0.5 A
Resistance Drain-Source RDS (on) : 0.34 Ohms Configuration : Dual
Maximum Operating Temperature : + 150 C Mounting Style : SMD/SMT
Package / Case : SC-70-6 Packaging : Reel

Description

Transistor Polarity : N-Channel
Drain-Source Breakdown Voltage : 25 V
Mounting Style : SMD/SMT
Packaging : Reel
Maximum Operating Temperature : + 150 C
Configuration : Dual
Gate-Source Breakdown Voltage : 8 V
Resistance Drain-Source RDS (on) : 0.34 Ohms
Package / Case : SC-70-6
Continuous Drain Current : 0.5 A


Features:

·25 V, 0.50 A continuous, 1.5 A peak. RDS(ON) = 0.45 Ω @ VGS= 4.5 V, RDS(ON) =0.60 Ω @ VGS= 2.7 V.
·Very low level gate drive requirements allowing direct operation in 3 V circuits (VGS(th) < 1.5 V).
·Gate-Source Zener for ESD ruggedness (>6kV Human Body Model).
·Compact industry standard SC70-6 surface mount package.



Pinout

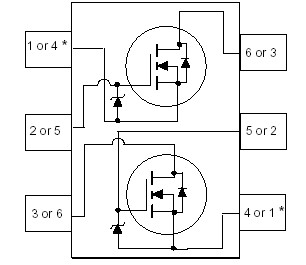

  Connection Diagram


Specifications

Symbol
Parameter
FDG6303N
Units
VDSS
VGSS
Drain-Source Voltage
Gate-Source Voltage
25
0.5
1.5
0.3
-55 to 150
6.0
- 0.5 to +8
V
V
A

W
°C
kV
ID
Drain Current Continuous
Pulsed
PD
Power Dissipation for Single Operation (Note 1)
TJ,TSTG
ESD
Operating and Storage Junction Temperature Range
Electrostatic Discharge Rating MIL-STD-883D Human Body
Model (100pf/1500O)

THERMAL CHARACTERISTICS
RJA Thermal Resistance, Junction-to-Ambient
415
°C/W



Description

These FDG6313N dual N-Channel logic level enhancement mode field effect transistors are produced using Fairchild's proprietary, high cell density, DMOS technology. This very high density process is especially tailored to minimize on-state resistance. This device has been designed especially for low voltage applications as a replacement for bipolar digital transistors and small signal MOSFETs.




Parameters:

Technical/Catalog InformationFDG6313N
VendorFairchild Semiconductor
CategoryDiscrete Semiconductor Products
Mounting TypeSurface Mount
FET Polarity2 N-Channel (Dual)
Drain to Source Voltage (Vdss)25V
Current - Continuous Drain (Id) @ 25° C500mA
Rds On (Max) @ Id, Vgs450 mOhm @ 500mA, 4.5V
Input Capacitance (Ciss) @ Vds 50pF @ 10V
Power - Max300mW
PackagingTape & Reel (TR)
Gate Charge (Qg) @ Vgs2.3nC @ 4.5V
Package / CaseSC-70-6, SC-88, SOT-323-6, SOT-363
FET FeatureLogic Level Gate
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names FDG6313N
FDG6313N
