FDG6317NZ General Description


This dual N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers. It has been optimized use in small switching regulators, providing an extremely low RDS(ON) and gate charge (QG) in a small package.

FDG6317NZ Maximum Ratings

Symbol
Parameter
Ratings
Units
VDSS
VGSS
 Drain-Source Voltage
Gate-Source Voltage
20
± 12
0.7
2.1
0.3
55 to +150
V
V
A

W

°C
ID
 Drain Current Continuous
Pulsed		 (Note 1)
PD
 Power Dissipation for Single Operation (Note 1)
TJ,TSTG Operating and Storage Junction Temperature Range

FDG6317NZ Features

· 0.7 A, 20 V. RDS(ON) = 400 mW @ VGS = 4.5 V RDS(ON) = 550 mW @ VGS = 2.5 V
· ESD protection diode (note 3)
· Low gate charge
· High performance trench technology for extremely low RDS(ON)
· Compact industry standard SC70-6 surface mount package

FDG6317NZ Typical Application

· DC/DC converter
· Power management
· Loadswitch

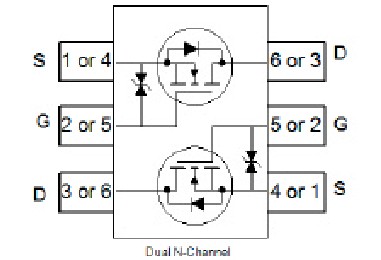

FDG6317NZ Connection Diagram

FDG6317NZ Connection Diagram

FDG6317NZ datasheet

FDG6317NZ
PDF/DataSheet Download

  • Datasheet: FDG6317NZ
  • File Size: 141804 KB
  • Manufacturer: FAIRCHILD [Fairchild Semiconductor]
  • Click here to Download
