FDG6331L

Power Switch ICs - Power Distribution Integ. Load Switch

product image

FDG6331L Picture
See larger image
SeekIC No. : 00629364 Detail

FDG6331L: Power Switch ICs - Power Distribution Integ. Load Switch

FDG6331L Data Sheet

floor Price/Ceiling Price

US $ .07~.13 / Piece | Get Latest Price
Part Number:
FDG6331L
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~25
  • 25~100
  • 100~250
  • Unit Price
  • $.13
  • $.11
  • $.09
  • $.07
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Number of Outputs : 1 On Resistance (Max) : 400 mOhms
Operating Supply Voltage : 2.5 V to 8 V Maximum Operating Temperature : + 150 C
Mounting Style : SMD/SMT Package / Case : SC-70-6

Description

On Time (Max) :
Off Time (Max) :
Supply Current (Max) :
Mounting Style : SMD/SMT
Number of Outputs : 1
Maximum Operating Temperature : + 150 C
Operating Supply Voltage : 2.5 V to 8 V
On Resistance (Max) : 400 mOhms
Package / Case : SC-70-6


Features:

• 0.8 A, 8 V. RDS(ON) = 260 mΩ @ VGS = 4.5 V RDS(ON) = 330 mΩ @ VGS = 2.5 V RDS(ON) = 450 mΩ @ VGS = 1.8 V
• Control MOSFET (Q1) includes Zener protection for ESD ruggedness (>6KV Human body model)
• High performance trench technology for extremely low RDS(ON)
• Compact industry standard SC70-6 surface mount package




Application

• Power management
• Load switch




Pinout

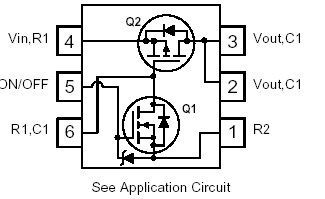

Connection Diagram




Specifications

Symbol
Parameter
Ratings
Units
VIN
VON/OFF
 Gate-Source Voltage (Q2)
Gate-Source Voltage (Q1)
± 8
0.5 to 8
0.8
2.4
0.3
55 to +150
V
V
A

W

°C
ILoad
 Load Current Continuous
Pulsed		 (Note 2)
(Note 2)
PD
 Maximum Power Dissipation (Note 1)
TJ,TSTG Operating and Storage Junction Temperature Range




Product Product status Eco Status Pricing* Package type Leads Packing method Package Drawing Package Marking Convention**
FDG6331L Full Production RoHS Compliant $0.204 SC70-6 6 TAPE REEL Line 1: &Y (Binary Calendar Year Coding)
Line 2: .31
* Fairchild 1,000 piece Budgetary Pricing
** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product FDG6331L is available. Click here for more information .





Description

This FDG6331L device is particularly suited for compact power management in portable electronic equipment where 2.5V to 8V input and 0.8A output current capability are needed. This load switch integrates a small N-Channel power MOSFET (Q1) that drives a large P-Channel power MOSFET (Q2) in one tiny SC70-6 package.






Parameters:

Technical/Catalog InformationFDG6331L
VendorFairchild Semiconductor (VA)
CategoryIntegrated Circuits (ICs)
TypeHigh Side Switch
Number of Outputs1
Voltage - Input2.5 ~ 8 V
Package / CaseSC-70-6, SC-88, SOT-323-6, SOT-363
PackagingDigi-Reel?
Current Limit800mA
Internal Switch(s)Yes
Operating Temperature-55°C ~ 150°C
Rds (On)260 mOhm
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names FDG6331L
FDG6331L
FDG6331LDKR ND
FDG6331LDKRND
FDG6331LDKR
