FDR8321L

Features: ·VDROP = 0.2V @ VIN= 5V, IL= 2.9A. RDS(ON) = 0.070 W VDROP = 0.2V @ VIN= 2.5V, IL= 2A. RDS(ON) = 0.105 W.·VON/OFF Zener protection for ESD ruggedness (>6KV Human Body Model).·High density cell design for extremely low on-resistance.PinoutSpecifications Symbol Parameter ...

product image

FDR8321L Picture
See larger image
SeekIC No. : 004341089 Detail

FDR8321L: Features: ·VDROP = 0.2V @ VIN= 5V, IL= 2.9A. RDS(ON) = 0.070 W VDROP = 0.2V @ VIN= 2.5V, IL= 2A. RDS(ON) = 0.105 W.·VON/OFF Zener protection for ESD ruggedness (>6KV Human Body Model).·High densi...

FDR8321L Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FDR8321L
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·VDROP = 0.2V @ VIN= 5V, IL= 2.9A. RDS(ON) = 0.070 W
   VDROP = 0.2V @ VIN= 2.5V, IL= 2A. RDS(ON) = 0.105 W.
·VON/OFF Zener protection for ESD ruggedness (>6KV Human Body Model).
·High density cell design for extremely low on-resistance.


Pinout

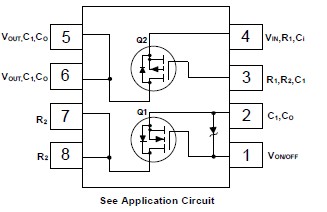

Connection Diagram


Specifications

Symbol
Parameter
FDR8321L
Units
VIN
 Input Voltage Range
2.5 - 8
V
VON/OFF
 On/Off Voltage Range
1.5 - 8
V
I L
 Load Current @ VDROP= 0.2V - Continuous (Note 1)
2.9
A
- Pulsed
10
PD
 Maximum Power Dissipation (Note 2)
0.8
W
TJ,TSTG
 Operating and Storage Temperature Range
-55 to 150
°C



Description

This device FDR8321L is designed for configuration as a load switch and is particularly suited for Power Management in portable battery powered electronic equipment. Designed to operate from 2.5V to 8V input and supply up to 2.9A. The device FDR8321L features a small N-Channel MOSFET (Q1) together with a large P-Channel power MOSFET (Q2) in a single SuperSOTTM-8 package.
