Maximum Collector Emitter Saturation Voltage
: 0.4 V
Isolation Voltage
: 5000 Vrms
Maximum Forward Diode Voltage
: 1.5 V
Minimum Operating Temperature
: - 40 C
Maximum Collector Current
: 50 mA
Maximum Operating Temperature
: + 85 C
Packaging
: Bulk
Input Type
: DC
Maximum Collector Emitter Voltage
: 30 V
Current Transfer Ratio
: 200 %
Package / Case
: PDIP-8
Maximum Power Dissipation
: 145 mW
Features: •Optocoupler, precision reference and error amplifier in single package
• 2.5V reference
• CTR 100% to 200%
• 5,000V RMS isolation
• UL approved E90700, Volume 2
CSA approval 1296837
VDE approval 40002463
BSI approval 8702, 8703
• Low temperature coefficient 50 ppm/°C max
• FOD2741A: tolerance 0.5%
FOD2741B: tolerance 1%
FOD2741C: tolerance 2%Application• Power supplies regulation

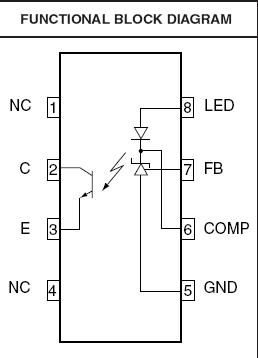

• DC to DC convertersPinout
Specifications
| Parameter |
Symbol |
Value |
Units |
| Storage Temperature |
TSTG |
-55 to +125 |
°C |
| Operating Temperature |
TOPR |
-25 to +85 |
°C |
| Lead Solder Temperature |
TSOL |
260 for 10 sec. |
°C |
| Input Voltage |
VLED |
37 |
v |
| Input DC Current |
ILED |
20 |
mA |
| Collector-Emitter Voltage |
VCEO |
30 |
v |
| Emitter-Collector Voltage |
VECO |
7 |
v |
| Collector Current |
IC |
50 |
mA |
| Input Power Dissipation (note 1) |
PD1 |
145 |
mW |
| Transistor Power Dissipation (note 2) |
PD2 |
85 |
mW |
| Total Power Dissipation (note 3) |
PD3 |
145 |
mW |
| FOD2741B |
Full Production |
RoHS Compliant |
$0.371 |
DIP-W |
8 |
BULK |
TBD |
| FOD2741BS |
Full Production |
RoHS Compliant |
$0.371 |
SMDIP-W |
8 |
BULK |
TBD |
| FOD2741BSD |
Full Production |
RoHS Compliant |
$0.414 |
SMDIP-W |
8 |
TAPE REEL |
TBD |
| FOD2741BSDV |
Full Production |
RoHS Compliant |
$0.414 |
SMDIP-W |
8 |
TAPE REEL |
TBD |
| FOD2741BSV |
Full Production |
RoHS Compliant |
$0.371 |
SMDIP-W |
8 |
BULK |
TBD |
| FOD2741BT |
Not recommended for new designs |
RoHS Compliant |
N/A |
DIP-W |
8 |
BULK |
TBD |
| FOD2741BTV |
Full Production |
RoHS Compliant |
$0.371 |
DIP-W |
8 |
BULK |
TBD |
| FOD2741BV |
Full Production |
RoHS Compliant |
$0.371 |
DIP-W |
8 |
BULK |
TBD |
* Fairchild 1,000 piece Budgetary Pricing
|
| ** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples |
DescriptionThe FOD2741 Optically Isolated Amplifier consists of the popular KA431 precision programmable shunt reference and an optocoupler. The optocoupler is a gallium arsenide (GaAs) light emitting diode optically coupled to a silicon phototransistor. FOD2741 comes in 3 grades of reference voltage tolerance = 2%, 1%, and 0.5%.
The Current Transfer Ratio (CTR) ranges from 100% to 200%. FOD2741 also has an outstanding temperature coefficient of 50 ppm/°C. It is primarily intended for use as the error amplifier/ reference voltage/optocoupler function in isolated ac to dc power supplies and dc/dc converters.
When using the FOD2741, power supply designers can reduce the component count and save space in tightly packaged designs. The tight tolerance reference eliminates the need for adjustments in many applications. The FOD2741 comes in a 8-pin dip white package
Parameters: | Technical/Catalog Information | FOD2741B |
| Vendor | Fairchild Optoelectronics Group |
| Category | Isolators |
| Isolation Voltage | 5000Vrms |
| Input Type | DC |
| Output Type | Transistor |
| Current - Output/Channel | 50mA |
| Voltage - Output | 30V |
| Vce Saturation (Max) | 400mV |
| Current Transfer Ratio (Min) | 100% @ 10mA |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP |
| Packaging | Tube |
| Number of Circuits | 1 - Single |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FOD2741B
FOD2741B
|
FOD2741B Data Sheet
