Part Number: FQD10N20C



MFG: FAIRC

Package Cooled: TO-252(DPAK)

D/C: 09+

Description: These N-Channel enhancement mode power field effect transistors are produced using Fairchild's proprie...


Urgent Purchase

FQD10N20C General Description


These N-Channel enhancement mode power field effect transistors are produced using Fairchild's proprietary, planar stripe, DMOS technology.

This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. These devices are well suited for high efficiency switching DC/DC converters, switch mode power supplies, DC-AC converters for interrupted power supplies and motor controls.

FQD10N20C Maximum Ratings

Symbol Parameter
FQD10N20C / FQU10N20C
Units
VDSS Drain-Source Voltage
200
V
ID Drain Current  - Continuous (TC = 25°C)
                       - Continuous (TC = 100°C)
7.8
A
5.0
A
IDM Drain Current - Pulsed (Note 1)
31.2
A
VGSS Gate-Source Voltage
± 30
V
EAS Single Pulsed Avalanche Energy (Note 2)
210
mJ
IAR Avalanche Current (Note 1)
7.8
A
EAR Repetitive Avalanche Energy (Note 1)
5.0
mJ
dv/dt Peak Diode Recovery dv/dt (Note 3)
5.5
V/ns
PD Power Dissipation (TC = 25°C)
                      - Derate above 25°C
50
W
0.4
W/°C
TJ, TSTG Operating and Storage Temperature Range
-55to+150
°C
TL Maximum lead temperature for soldering purposes,
1/8" from case for 5 seconds
300
°C
Notes:
1. Repetitive Rating : Pulse width limited by maximum junction temperature
2. L = 5.2mH, IAS = 7.8A, VDD = 50V, RG = 25 Ω, Starting TJ = 25°C
3. ISD 9.5A, di/dt 300A/µs, VDD BVDSS, Starting TJ = 25°C
4. Pulse Test : Pulse width 300µs, Duty cycle 2%
5. Essentially independent of operating temperature

FQD10N20C Features

• 7.8A, 200V, RDS(on) = 0.36Ω @VGS = 10 V
• Low gate charge ( typical 20 nC)
• Low Crss ( typical 40.5 pF)
• Fast switching
• 100% avalanche tested
• Improved dv/dt capability

FQD10N20C datasheet

FQD10N20C
PDF/DataSheet Download

  • Datasheet: FQD10N20C
  • File Size: 603681 KB
  • Manufacturer: FAIRCHILD [Fairchild Semiconductor]
  • Click here to Download

Find FQD10N20C Suppliers

  • ·FQD10N20
  • FAIRCHILD [Fairchild Semiconductor]
  • 200V LOGIC N-Channel MOSFET
  • 590060 KB
  • FQD10N20 Datasheet Download
  • ·FQD10N20L
  • FAIRCHILD [Fairchild Semiconductor]
  • 200V LOGIC N-Channel MOSFET
  • 590060 KB
  • FQD10N20L Datasheet Download
  • ·FQD11P06
  • FAIRCHILD [Fairchild Semiconductor]
  • 60V P-Channel MOSFET
  • 630731 KB
  • FQD11P06 Datasheet Download
  • ·FQD12N20
  • FAIRCHILD [Fairchild Semiconductor]
  • 200V N-Channel MOSFET
  • 711617 KB
  • FQD12N20 Datasheet Download
  • ·FQD12N20L
  • FAIRCHILD [Fairchild Semiconductor]
  • 200V LOGIC N-Channel MOSFET
  • 621425 KB
  • FQD12N20L Datasheet Download
  • ·FQD12P10
  • FAIRCHILD [Fairchild Semiconductor]
  • 100V P-Channel MOSFET
  • 639654 KB
  • FQD12P10 Datasheet Download
  • ·FQD13N06
  • FAIRCHILD [Fairchild Semiconductor]
  • 60V N-Channel MOSFET
  • 675836 KB
  • FQD13N06 Datasheet Download
  • ·FQD13N06L
  • FAIRCHILD [Fairchild Semiconductor]
  • 60V LOGIC N-Channel MOSFET
  • 669281 KB
  • FQD13N06L Datasheet Download

Related Part Number

FQD10N20C Relative Products

  • FQB9P25TM

    FQB9P25TM

    MOSFET P-CH 250V 9.4A D2PAK

  • FQB9P25

    FQB9P25

    These P-Channel enhancement mode power FQB9P25field effect transistors are produced using Fairchild's proprietary, planar stripe, DMOS technology.This advanced technology FQB9P25is especially tailored to minimize on-state resistance, provide superior switchi...

  • FQB9N50TM

    FQB9N50TM

    MOSFET N-CH 500V 9A D2PAK

  • FQB9N50CTM

    FQB9N50CTM

    MOSFET N-CH 500V 9A D2PAK

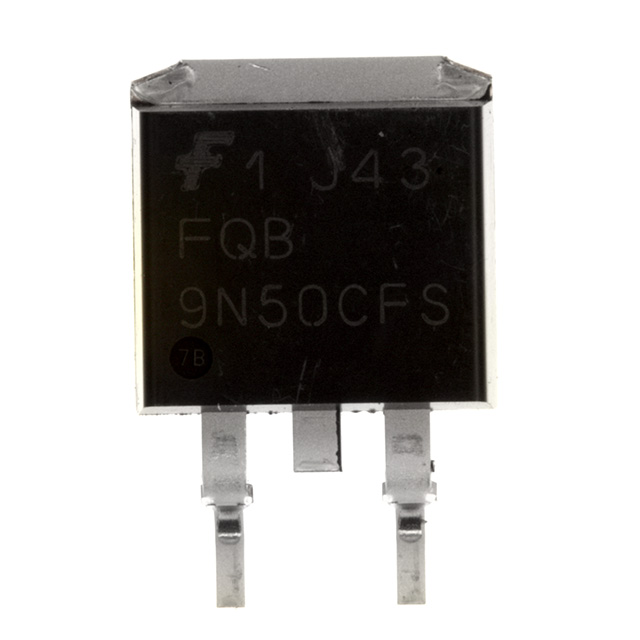

  • FQB9N50CFTM_WS
