FS02...B
-
Suppliers
DataSheet
General Description
FS02...B Maximum Ratings
|
SYMBOL |
PARAMETER | CONDITIONS |
Min. |
Max. |
Unit |
|
I T(RMS) |
On-state Current | All Conduction Angle, TL = 60 ºC |
1.25 |
A | |
|
I T(AV) |
Average On-state Current | Half Cycle, Q = 180 º, TL = 60 ºC |
0.8 |
A | |
|
ITSM |
Non-repetitive On-State Current | Half Cycle, 60 Hz, Tj = 25 ºC |
25 |
A | |
|
ITSM |
Non-repetitive On-State Current | Half Cycle, 50 Hz, Tj = 25º C |
22.5 |
A | |
|
I2t |
Fusing Current | tp = 10ms, Half Cycle |
2.5 |
A2s | |
|
VGRM |
Peak Reverse Gate Voltage | IGR = 10 A, Tj = 25 ºC |
8 |
V | |
|
IGM |
Peak Gate Current | 20 s max. |
1.2 |
A | |
|
PGM |
Peak Gate Dissipation | 20 s max. |
3 |
W | |
|
P G(AV) |
Gate Dissipation | 20ms max. |
0.2 |
W | |
|
Tj |
Operating Temperature |
-40 |
+125 |
||
|
Tstg |
Storage Temperature |
-40 |
+150 |
||
|
Tsld |
Soldering Temperature |
260 |
FS0090C1
PDF/DataSheet Download
- Datasheet: FS0090C1
- File Size: 227583 KB
- Manufacturer: ETC [ETC]
- Click here to Download
- ·FS0202MA00BU
- SENSITIVE GATE SCR
- 146207 KB
- ·FS0401BD00TR
- ETC [ETC]
- SURFACE MOUNT SCR
- 168132 KB
- ·FS04D
- ETC [ETC]
- SURFACE MOUNT SCR
- 168132 KB
- ·FS04X-1JM
- EPCOS
- Switching Spark Gap
- 402302 KB
- ·FS04X-1JMG
- EPCOS
- Switching Spark Gap
- 401611 KB
- ·FS06X-1N
- EPCOS
- Switching Spark Gap
- 401611 KB
- ·FS06X-1NG
- EPCOS
- Switching Spark Gap
- 412900 KB
- ·FS0802
- ETC [ETC]
- SURFACE MOUNT SCR
- 139833 KB
FS02...B Relative Products
FS02...A

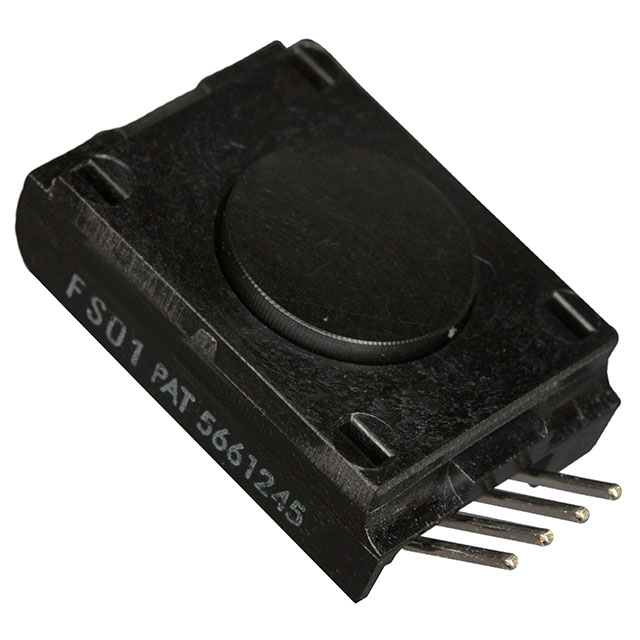

FS01
