SeekIC No. : 003828185 Detail

G8N-1L-DC12: RELAY AUTOMOTIVE SPDT 30A 12V

G8N-1L-DC12 Data Sheet

Get Latest Price

Part Number:: G8N-1L-DC12
Mfg:
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/5/6

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

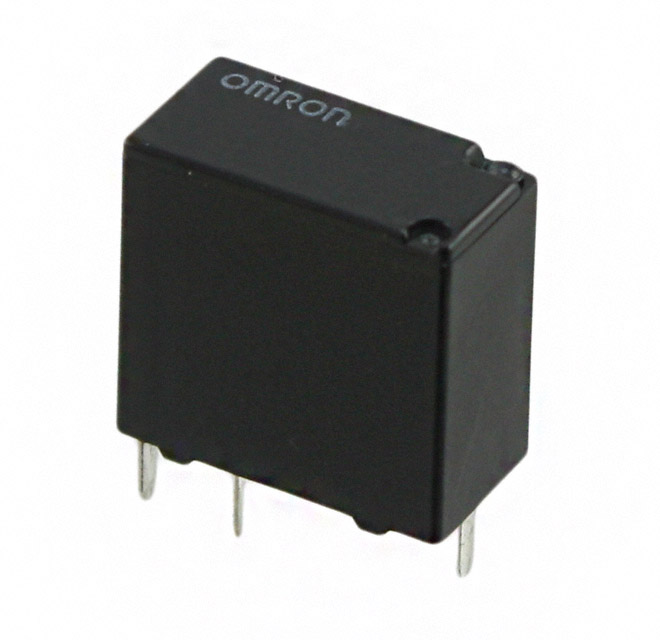

G8N-1 DC12 SK evaluate
US $3.34 - 6.18 / Piece

RELAY AUTOMOTIVE SPDT 30A 12V
G8N-1-DC12SK evaluate
US $4.45 - 6.18 / Piece

General Purpose / Industrial Relays Automotive Super-Micro Relay
G8N-1H DC12 SK evaluate
US $5.51 - 7.16 / Piece

General Purpose / Industrial Relays Automotive Relay Super Micro

Product Details

Quick Details

Series:	G8N-1	Manufacturer:	Omron Electronics Inc-EMC Div
Relay Type:	Automotive	Coil Type:	Non Latching
Coil Current:	53.3mA	Coil Voltage:	12VDC
Contact Form:	SPDT (1 Form C)	Contact Rating (Current):	30A
Switching Voltage:	16VDC - Max	Turn On Voltage (Max):	7.2 VDC
Package / Case :	TQFN-56	Turn Off Voltage (Min):	1 VDC
Features:	-	Mounting Type:	Through Hole
Termination Style:	PC Pin

Description

Coil Type: Non Latching
Coil Voltage: 12VDC
Contact Form: SPDT (1 Form C)
Mounting Type: Through Hole
Termination Style: PC Pin
Packaging: Bulk
Features: -
Turn On Voltage (Max): 7.2 VDC
Relay Type: Automotive
Contact Rating (Current): 30A
Manufacturer: Omron Electronics Inc-EMC Div
Coil Current: 53.3mA
Switching Voltage: 16VDC - Max
Turn Off Voltage (Min): 1 VDC
Series: G8N-1

Parameters:

Technical/Catalog Information	G8N-1L-DC12
Vendor	Omron Electronics Inc-ECB Div
Category	Relays
Relay Type	Automotive
Mounting Type	Through Hole
Termination Style	PC Pin
Circuit	SPDT (1 Form C)
Contact Rating @ Voltage	30A @ 12VDC
Coil Voltage	12VDC
Control Off Voltage (Min)	1 VDC
Control On Voltage (Max)	7.2 VDC
Coil Current	53.3mA
Coil Type	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	G8N 1L DC12 G8N1LDC12 Z2698 ND Z2698ND Z2698
