GL811E

Features: · Complies with Universal Serial Bus specification rev. 2.0.· Complies with ATA/ATAPI-6 specification rev 1.0.· Complies with USB Storage Class specification ver.1.0. (Bulk only protocol)· Operating system supported: Win XP / 2000 / Me / 98 / 98SE; Mac OS 9.X / X.· Integrated USB 2.0 Tra...

product image

GL811E Picture
See larger image
SeekIC No. : 004353772 Detail

GL811E: Features: · Complies with Universal Serial Bus specification rev. 2.0.· Complies with ATA/ATAPI-6 specification rev 1.0.· Complies with USB Storage Class specification ver.1.0. (Bulk only protocol)·...

GL811E Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
GL811E
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Complies with Universal Serial Bus specification rev. 2.0.
· Complies with ATA/ATAPI-6 specification rev 1.0.
· Complies with USB Storage Class specification ver.1.0. (Bulk only protocol)
· Operating system supported: Win XP / 2000 / Me / 98 / 98SE; Mac OS 9.X / X.
· Integrated USB 2.0 Transceiver Macrocell Interface (UTMI) transceiver and Serial Interface Engine (SIE).
· USB 2.0 certified (TestID=40380268)
· Supports 4 endpoints: Control (0) / Bulk Read (1) / Bulk Write (2) / Interrupt (3).
· 64 / 512 bytes Data Payload for full / high speed Bulk Endpoint.
· Supports 16-bit Multiword DMA mode and Ultra DMA mode interface (Ultra 33 / 66).
· Embedded 7.5 MIPS RISC CPU.
· ROM size: 4k words; RAM size: 128 bytes.
· Supports Power Down mode and USB suspend indicator.
· Supports USB 2.0 TEST mode features.
· Supports 2 GPIO (GPIO5 & 6) for programmable AP (only for 64 pin package).
· Supports device power control for power on/off when running suspend mode (only for 64 pin package).
· Supports 32 bit and 48 bit LBA hard disk.
· Provides LED indicator for Full Speed and High Speed (only for 64 pin package).
· 12 MHz external clock to provide better EMI.
· 3.3V power input; 5V tolerance pad for IDE interface.
· Supports Wakeup ability.
· Available in 48-pin LQFP/TQFP and 64-pin LQFP/TQFP package.




Pinout

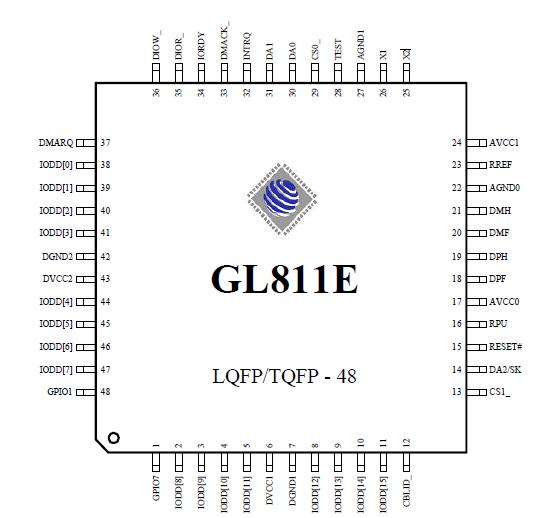

Connection Diagram




Specifications

Symbol Description Min Max Unit
VCC DC supply voltage -0.3 +3.6 V
VI DC input voltage -0.3 VCC + 0.3 V
VI/O DC input voltage range for I/O -0.3 VCC + 0.3 V
VAI/O DC input voltage for USB D+/D- pins -0.3 VCC + 0.3 V
VI/OZ DC voltage applied to outputs in High Z state -0.3 VCC + 0.3 V
VESD Static discharge voltage 4000 V
TA Ambient Temperature 0 100





Description

The GL811E is an ultra-compatible, high performance USB 2.0 to ATA/ATAPI bridge controller that integrates Genesys Logic's own UTMI (USB 2.0 Transceiver Macrocell Interface) transceiver design.
A single chip solution that complies with Universal Serial Bus specification rev. 2.0 and ATA/ATAPI-6 specification rev 1.0, the GL811E supports various kinds of ATA/ATAPI devices. Compliance with USB Storage Class specification ver.1.0 (Bulk only protocol) enables the GL811E to support not only plug-and-play but also Windows XP/2000/ME default drivers.

The GL811E uses 12 MHz crystal and slew-rate controlled pads to reduce the EMI issue. With 48-pin LQFP and 64-pin TQFP packages, the GL811E is the ideal cost/performance solution for design in the USB 2.0 high-speed, storage class applications such as USB 2.0 external Hard Drive, CD-R/RW, DVD-ROM, and DVD+-RW.
