GL813

Features: ·Complies with Universal Serial Bus specification rev. 2.0.·Complies with Compact Flash specification rev. 1.4.·Complies with USB Storage Class specification ver.1.0. (Bulk only protocol)·Operating system supported: Win XP/ 2000/ ME/ 98/ 98SE; Mac OS 9.X/ X.·Supports 4 endpoints: Control...

product image

GL813 Picture
See larger image
SeekIC No. : 004353775 Detail

GL813: Features: ·Complies with Universal Serial Bus specification rev. 2.0.·Complies with Compact Flash specification rev. 1.4.·Complies with USB Storage Class specification ver.1.0. (Bulk only protocol)·...

GL813 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
GL813
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Complies with Universal Serial Bus specification rev. 2.0.
·Complies with Compact Flash specification rev. 1.4.
·Complies with USB Storage Class specification ver.1.0. (Bulk only protocol)
·Operating system supported: Win XP/ 2000/ ME/ 98/ 98SE; Mac OS 9.X/ X.
·Supports 4 endpoints: Control/ Bulk Read/ Bulk Write/ Interrupt.
·64/ 512 bytes Data Payload for full / high speed Bulk Endpoint.
·Supports 8-bit / 16-bit Standard PIO mode interface.
·Embedded USB 2.0 UTMI transceiver.
·Embedded 7.5 MIPS RISC CPU.
·Supports external ROM/ Flash modes for design flexibility. (100-pin LQFP)
·Supports Power Down mode and USB suspend indicator.
·Supports USB 2.0 TEST mode features.
·12MHz external clock to provide better EMI3.3V power input.
·5V tolerance pad for Compact Flash Card interface.
·Supports EEPROM to customize USB VID / PID and String Descriptors.
·Available in 48-pin (9mmX9mm) / 100-pin (14mmX14mm) LQFP package.


Pinout

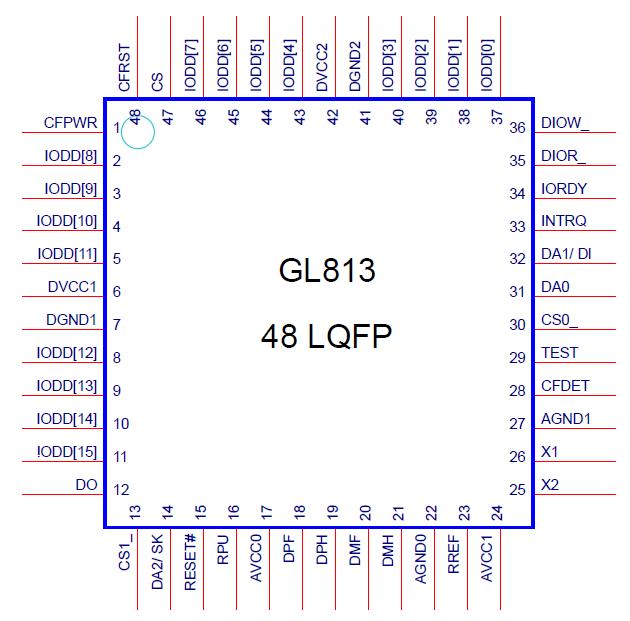

Connection Diagram


Specifications

Symbol Description Min Max Unit
VCC DC supply voltage -0.3 +3.6 V
VI DC input voltage -0.3 VCC + 0.3 V
VI/O DC input voltage range for I/O -0.3 VCC + 0.3 V
VAI/O DC input voltage for USB D+/D- pins -0.3 VCC + 0.3 V
VI/OZ DC voltage applied to outputs in High Z state -0.3 VCC + 0.3 V
VESD Static discharge voltage 4000   V
TA Ambient Temperature 0 100



Description

The GL813 is a high performance, low cost USB2.0 CompactFlash-single card reader controller. With the integration of GenesysLogic own design USB 2.0 high speed UTMI transceiver, the GL813 has made a conspicuous improvement with full speed USB 1.1 card readers on data transfer rate between PC host and flash memory card.

There are totally 4 endpoints in GL813 controller, Control, Bulk In, Bulk Out, and Interrupt. Complies with USB 480Mbps specification ver. 2.0 and USB Storage Class specification ver. 1.0. (Bulk only protocol), the GL813 can support not only plug and play but also Windows ME/ 2000/ XP default driver. For the EMI consideration, the GL813 uses 12MHZ crystal and slew-rate controlled pads to reduce the EMI issue.

The GL813 is 48-pin LQFP package (9mmX9mm) to make the best cost competitive for the high speed single flash card reader design and applications. Also we provide 100-pin LQFP package (14mmX14mm) with external ROM/ Flash for design flexibility.
