Five Points

Part Number: GS71024









Description: The GS71024 is a high speed CMOS static RAM organized as 65,536 words by 24 bits. Static design eliminates the need for...


Urgent Purchase

GS71024 General Description


The GS71024 is a high speed CMOS static RAM organized as 65,536 words by 24 bits. Static design eliminates the need for external clocks or timing strobes. The GS71024 operates on a single 3.3 V power supply, and all inputs and outputs are TTL-compatible. The GS71024 is available in a 6 mm x 8 mm Fine Pitch BGA package, as well as in a 100 pin TQFP package.

GS71024 Maximum Ratings

Parameter Symbol Rating Unit
Supply Voltage VDD 0.5 to +4.6 V
Input Voltage VIN 0.5 to VDD +0.5
( 4.6 V max.)		 V
Output Voltage VOUT 0.5 to VDD +0.5
( 4.6 V max.)		 V
Allowable TQFP power dissipation PD 1 W
Allowable FPBGA power dissipation PD 1 W
Storage temperature TSTG 55 to 150

GS71024 Features

• Fast access time: 8, 9, 10, 12, 15 ns
• CMOS low power operation: 190/170/160/130/110 mA at minimum cycle time.
• Single 3.3 V ± 0.3 V power supply
• All inputs and outputs are TTL-compatible
• Fully static operation
• Industrial Temperature Option: 40 to 85°C
• Package
   T: 100-pin TQFP package
   U: 6 mm x 8 mm Fine Pitch Ball Grid Array
   GT: Pb-Free 100-pin TQFP available

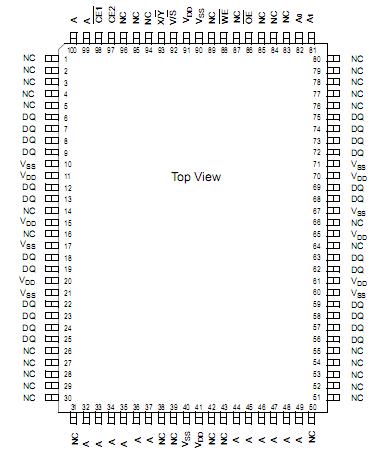

GS71024 Connection Diagram

GS71024 Connection Diagram
