Part Number: GS71108A
Description: The GS71108A is a high speed CMOS Static RAM organized as 131,072 words by 8 bits. Static design eliminates the need fo...
- Table of contents:
GS71108A
-
Suppliers
DataSheet
General Description
GS71108A General Description
The GS71108A is a high speed CMOS Static RAM organized as 131,072 words by 8 bits. Static design eliminates the need for external clocks or timing strobes. The GS operates on a single 3.3 V power supply and all inputs and outputs are TTL-compatible. The GS71108A is available in a 6 mm x 8 mm Fine Pitch BGA package, as well as in 300 mil and 400 mil SOJ and 400 mil TSOP Type-II packages.
GS71108A Maximum Ratings
| Parameter | Symbol | Rating | Unit |
| Supply Voltage | VDD | 0.5 to +4.6 | V |
| Input Voltage | VIN | 0.5 to VDD +0.5 ( 4.6 V max.) |
V |
| Output Voltage | VOUT | 0.5 to VDD +0.5 ( 4.6 V max.) |
V |
| Allowable power dissipation | PD | 0.7 | W |
| Storage temperature | TSTG | 55 to 150 |
GS71108A Features
• Fast access time: 7, 8, 10, 12 ns
• CMOS low power operation: 140/120/95/80 mA at minimum cycle time
• Single 3.3 V power supply
• All inputs and outputs are TTL-compatible
• Fully static operation
• Industrial Temperature Option: 40° to 85°C
• Package line up
J: 400 mil, 32-pin SOJ package
TP: 400 mil, 32-pin TSOP Type II package
SJ: 300 mil, 32-pin SOJ package
U: 6 mm x 8 mm Fine Pitch Ball Grid Array package
• CMOS low power operation: 140/120/95/80 mA at minimum cycle time
• Single 3.3 V power supply
• All inputs and outputs are TTL-compatible
• Fully static operation
• Industrial Temperature Option: 40° to 85°C
• Package line up
J: 400 mil, 32-pin SOJ package
TP: 400 mil, 32-pin TSOP Type II package
SJ: 300 mil, 32-pin SOJ package
U: 6 mm x 8 mm Fine Pitch Ball Grid Array package

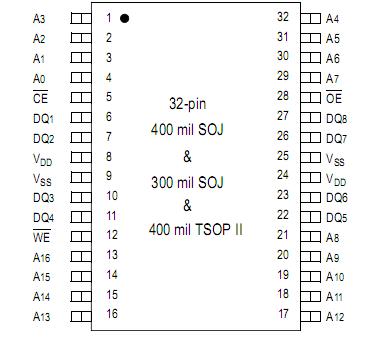

GS71108A Connection Diagram
GS71108AJ-10
