Part Number: GS9022



MFG: gs

Package Cooled: PLCC



Description: The GS9022 is a monolithic bipolar integrated circuit designed to serialize SMPTE 125M and SMPTE 244M bit parallel digi...


Urgent Purchase

GS9022 General Description


The GS9022 is a monolithic bipolar integrated circuit designed to serialize SMPTE 125M and SMPTE 244M bit parallel digital signals as well as other 8 or 10 bit parallel formats. This device performs the functions of sync detection, parallel to serial conversion, data scrambling (using the X9 + X4 +1 algorithm), 10x parallel clock multiplication and conversion of NRZ to NRZI serial data.   The data rate is automatically set   for SMPTE 259M data rates to 400 Mb/s.  Other features include a lock detect output and an internal cable driver capable of driving two 75Ω loads.

The device requires a single +5 volt or -5 volt supply and typically consumes 650 mW of power while driving two 75 Ω loads. The 28 pin PLCC packaging assures a small footprint for the complete encoder function.

GS9022 Maximum Ratings

PARAMETER VALUE
Supply Voltage 5.5V
Input Voltage Range (any input) -VEE < VI< VCC
DC Input Current (any one input) 10 mA
Power Dissipation (VS = 5.25 V) 910 mW
Operating Temperature Range 0°C T 70°C
Storage Temperature Range -65°C TS 150°C
Lead Temperature (soldering, 10 sec) 260°C

GS9022 Features

•   built-in 75 Ω cable driver with two serial outputs
•   standard independent operation
•   space saving 28 pin PLCC package
•   650 mW typical power dissipation (data output driving 75 Ω load).
•   supports bit rates to 400 Mb/s
•   accepts 8 bit and 10 bit TTL and CMOS compatible parallel data inputs
•   fully compatible with SMPTE 259M serial digital standard
•   single +5 or -5 volt supply

GS9022 Typical Application

•4ƒSC, 4:2:2 and 360 Mb/s serial digital interfaces for:
  Video cameras                    VTRs
  Signal generators               Portable equipment

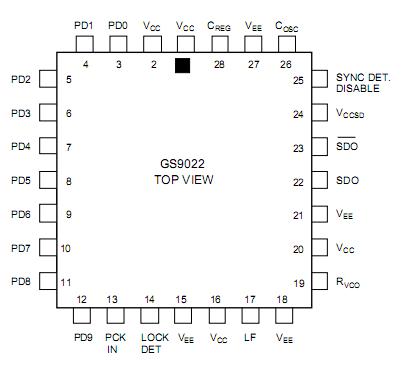

GS9022 Connection Diagram

GS9022 Connection Diagram
