GS9062

Features:

• SMPTE 259M-C compliant scrambling and
NRZ NRZI encoding (with bypass)
• DVB-ASI sync word insertion and 8b/10b encoding
• adjustable loop bandwidth
• user selectable additional processing features including:
• ANC data checksum, and line number
calculation and insertion
• TRS and EDH packet generation and insertion
• illegal code remapping
• internal flywheel for noise immune TRS generation
• 20-bit / 10-bit CMOS parallel input data bus
• 27MHz / 13.5MHz parallel digital input
• automatic standards detection and indication
• Pb-free and RoHS compliant
• 1.8V core power supply and 3.3V charge pump
power supply
• 3.3V digital I/O supply
• JTAG test interface
• small footprint compatible with GS1560A, GS1561,
GS1532, and GS9060




Application

• SMPTE 259M-C Serial Digital Interfaces
• DVB-ASI Serial Digital Interfaces




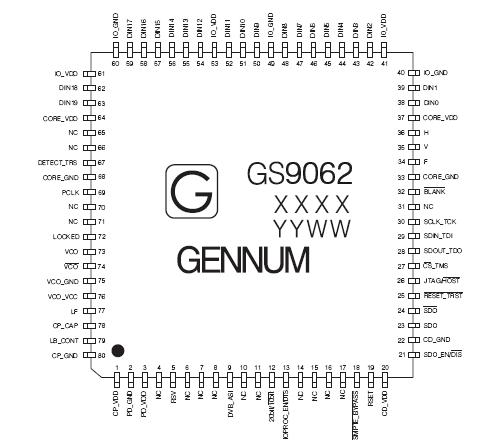

Pinout






Specifications

Parameter	Value/Units
Supply Voltage Core	-0.3V to +2.1V
Supply Voltage I/O	-0.3V to +4.6V
Input Voltage Range (any input)	-2.0V to + 5.25V
Ambient Operating Temperature	-20°C < TA < 85°C
Storage Temperature	-40°C < TSTG < 125°C
Solder Reflow Temperature	230°C
ESD Protection On All Pins	1kV

1. NOTE: See reflow solder profiles (Solder Reflow Profiles on page 15)
2. MIL STD 883 ESD protection applied to all pins on the device.




Description


The GS9062 is a dual-standard serializer with an integrated cable driver. When used in conjunction with the GO1555/GO1525* Voltage Controlled Oscillator, a transmit solution can be realized for SD-SDI and DVB-ASI applications.

The device features an internal PLL, which can be configured for loop bandwidth as narrow as 100kHz. Thus the GS9062 can tolerate in excess of 300ps jitter on the input PCLK and still provide output jitter well within SMPTE specification. Connect the output clocks from Gennums GS4911 clock generator directly to the its PCLK input and configure the GS9062s loop bandwidth accordingly.

In addition to serializing the input, the GS9062 performs NRZ-to-NRZI encoding and scrambling as per SMPTE 259M-C when operating in SMPTE mode. When operating in DVB-ASI mode, the device will insert K28.5 sync characters and 8b/10b encode the data prior to serialization.

Parallel data inputs of GS9062 are provided for 10-bit multiplexed or 20-bit demultiplexed formats. An appropriate parallel clock input signal is also required.

The integrated cable driver of GS9062 features an output mute on loss of parallel clock, high impedance mode and adjustable signal swing.

The GS9062 also includes a range of data processing functions including automatic standards detection and EDH support. The device can also insert TRS signals, re-map illegal code words and insert SMPTE 352M payload identifier packets. All processing features are optional and may be enabled/disabled via external control pin(s) and/or host interface programming.

The GS9062 is Pb-free, and the encapsulation compound does not contain halogenated flame retardant (RoHS compliant).

* For new designs use GO1555
