Part Number: GS9068



MFG: 114

Package Cooled: GENNUM



Description: The GS9068 is a second generation high-speed bipolar integrated circuit designed to drive one or two 75Ω co-axial...


Urgent Purchase

GS9068 General Description


The GS9068 is a second generation high-speed bipolar integrated circuit designed to drive one or two 75Ω co-axial cables at data rates up to 540Mb/s. The GS9068 accepts a LVPECL level differential input, which may be AC coupled. External biasing resistors at the inputs are not required. Power consumption is typically 160mW using a +3.3V DC power supply

GS9068 Maximum Ratings

PARAMETER VALUE
Supply Voltage -0.5V to 3.6 VDC
Input ESD Voltage 500V
Storage Temperature Range -50°C < Ts < 125°C
nput Voltage Range (any input) -0.3 to (VCC +0.3)V
Operating Temperature Range 0°C to 70°C
Power Dissipation 300mW
Lead Temperature (soldering, 10 sec) 260°C

GS9068 Features

• SMPTE 259M and SMPTE 344M compliant
• dual coaxial cable driving outputs
• 50Ω differential PECL input
• single 3.3V power supply operation
• space-saving 8-lead SOIC
• operating temperature range: 0°C to 70°C
• pin compatible with GS1528 HD-LINX™ II multirate SDI dual slew-rate cable driver
• Pb-free and Green

GS9068 Typical Application

• SMPTE 259M Coaxial Cable Serial Digital Interfaces

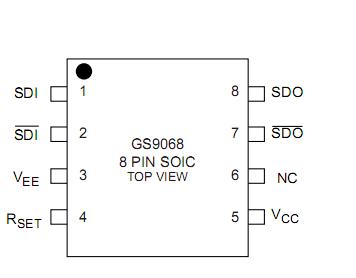

GS9068 Connection Diagram

GS9068 Connection Diagram

GS9068 datasheet

GS9068
PDF/DataSheet Download
