GTLP16616 General Description
GTLP16616 Maximum Ratings
Supply Voltage (VCC) ....................−0.5V to +7.0V
DC Input Voltage (VI) ....................−0.5V to +7.0V
DC Output Voltage (VO)
Outputs 3-STATE ...........................−0.5V to +7.0V
Outputs Active (Note 5)........ −0.5V to VCC + 0.5V
DC Output Sink Current into
A-Port IOL................................................... 64 mA
DC Output Source Current from
A-Port IOH ................................................−64 mA
DC Output Sink Curren
into B-Port in the LOW State,
IOL ....................................................... ......80 mA
DC Input Diode Current (IIK)
VI< 0V....................................................... −50 mA
DC Output Diode Current (IOK)
VO < 0V ............................................ ........−50 mA
VO > VCC ...................................................+50 mA
ESD Rating >2000V
Storage Temperature (TSTG)......... −65to +150
GTLP16616 Features
Bidirectional interface between GTLP and TTL logiclevels
Edge Rate Control to minimize noise on the GTLP port
Power up/down/off high impedance for live insertion
External VREF pin for receiver threshold
CMOS technology for low power dissipation
5 V tolerant inputs and outputs on the A-Port
Bus-hold data inputs on the A-Port eliminates the nee
for external pull-up resistors on unused inputs.
TTL compatible driver and control inputs
Flow through pinout optimizes PCB layout
Open drain on GTLP to support wired-or connection
A-port source/sink −32 mA/+32 mA
D-type flip-flop, latch and transparent data paths
GTLP Buffered CLKAB signal available (CLKOUT)
Recommended Operating Temperature −40 to 85

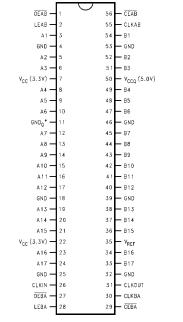

GTLP16616 Connection Diagram
