Features: • Fast access times: 4.8, 5, 6, and 7ns
• Fast clock speed: 100, 83, and 66MHz
• Provide high performance 3-1-1-1 access rate
• Fast OE# access times: 5, 6, and 7ns
• Optimal for depth expansion (one cycle chip deselect to eliminate bus contention)
• Single +3.3V -5% and +10%power supply
• Support +2.5V I/O
• 5V tolerant inputs except I/O's
• Clamp diodes to VSSQ at all outputs
• Common data inputs and data outputs
• BYTE WRITE ENABLE and GLOBAL WRITE control
• Three chip enables for depth expansion and address pipeline
• Address, control, input, and output pipeline registers
• Internally self-timed WRITE CYCLE
• Burst control pins (interleaved or linear burst sequence)
• Automatic power-down for portable applications
• High density, high speed packages
• Low capacitive bus loading

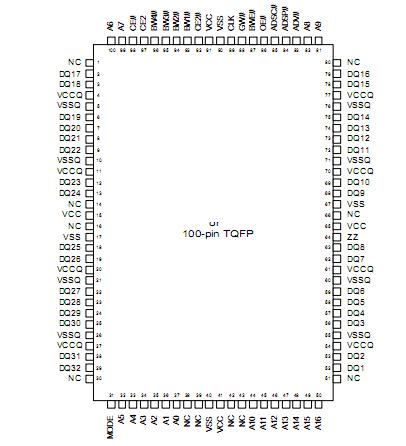

• High 30pF output drive capability at rated access timePinout
SpecificationsVoltage on VCC Supply Relative to VSS........ -0.5V to +4.6V
VIN ...........................................................- 0.5V to VCC+0.5V
Storage Temperature (plastic) .......................-55oC to +150o
Junction Temperature ...................................................+150o
Power Dissipation ...........................................................1.0W
Short Circuit Output Current .........................................50mADescriptionThe Galvantech Synchronous Burst SRAM GVT71128D32 familyemploys high-speed, low power CMOS designs usingadvanced triple-layer polysilicon, double-layer metaltechnology. Each memory cell consists of four transistors andtwo high valued resistors.
The GVT71128D32 SRAM integrates 131,072x32SRAM cells with advanced synchronous peripheral circuitryand a 2-bit counter for internal burst operation. Allsynchronous inputs are gated by registers controlled by apositive-edge-triggered clock input (CLK). The synchronousinputs of GVT71128D32 include all addresses, all data inputs, address-pipeliningchip enable (CE#), depth-expansion chip enables (CE2# andCE2), burst control inputs (ADSC#, ADSP#, and ADV#),write enables (BW1#, BW2#, BW3#, BW4#,and BWE#), andglobal write (GW#).
Asynchronous inputs of GVT71128D32 include the output enable (OE#)and burst mode control (MODE). The data outputs (Q),enabled by OE#, are also asynchronous.Addresses and chip of GVT71128D32 enables are registered with eitheraddress status processor (ADSP#) or address status controller(ADSC#) input pins. Subsequent burst addresses can beinternally generated as controlled by the burst advance pin(ADV#).
Address, data inputs, and write controls of GVT71128D32 are registered on-chip to initiate self-timed WRITE cycle. WRITE cycles canbe one to four bytes wide as controlled by the write controlnputs. Individual byte write allows individual byte to bewritten. BW1# controls DQ1-DQ8. BW2# controls DQ9-DQ16. BW3# controls DQ17-DQ24. BW4# controls DQ25-DQ32. BW1#, BW2# BW3#, and BW4# can be active onlywith BWE# being LOW. GW# being LOW causes all bytes tobe written. This device also incorporates pipelined enablecircuit for easy depth expansion without penalizing systemperformance.
The GVT71128D32 operates from a +3.3V powersupply. All inputs and outputs are TTL-compatible. Thedevice is ideally suited for 486, PentiumTM, 680x0, andPowerPCTM systems and for systems that are benefited from awide synchronous data bus.
