Purchase HA22040, In-stock HA22040 From SeekIC.
MFG:Hitachi Package Cooled:SOT23-6 D/C:04+
- Table of contents:
HA22040
-
Suppliers
DataSheet
General Description
HA22040 Maximum Ratings
|
Item |
Symbol |
Ratings |
Unit |
| Supply voltage |
Vdd |
5 |
V |
| Maximum current |
Idd |
15 |
mA |
| Power dissipation |
Pd |
100 |
mW |
| Channel temperature |
Tch |
150 |
°C |
| Storage temperature |
Tstg |
55 to +125 |
°C |
| Operation temperature |
Topr |
20 to +70 |
°C |
| Maximum input power | Pin max |
+15 |
dBm |
HA22040 Features
· Suitable for down converter of Micro Wave Application(1.5 GHz)
· Low voltage and low current operation (2.7V, 6mA typ.)
· High conversion gain (10.5 dB typ. @1489MHz)
· Low 3rd-order intercept point (IP3in=-0.5dBm typ, @1489MHz)
· Small surface mount package (MPAK-6)
· Low voltage and low current operation (2.7V, 6mA typ.)
· High conversion gain (10.5 dB typ. @1489MHz)
· Low 3rd-order intercept point (IP3in=-0.5dBm typ, @1489MHz)
· Small surface mount package (MPAK-6)

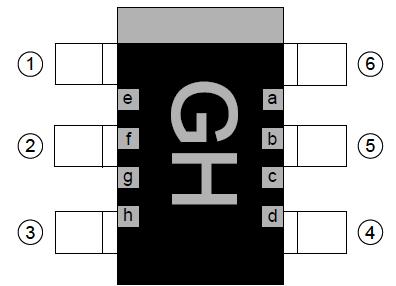

HA22040 Connection Diagram
HA22040
PDF/DataSheet Download
- Datasheet: HA22040
- File Size: 42704 KB
- Manufacturer: HITACHI [Hitachi Semiconductor]
- Click here to Download
