HFA08TB60

Product : Ultra Fast Recovery Rectifiers
Reverse Voltage : 600 V
Configuration : Single
Forward Continuous Current : 8 A
Reverse Current IR : 5 uA
Mounting Style : Through Hole
Packaging : Tube
Package / Case : TO-220AC
Max Surge Current : 60 A
Recovery Time : 55 ns
Forward Voltage Drop : 2.1 V at 16 A


Features:

• Ultrafast Recovery
• Ultrasoft Recovery
• Very Low IRRM
• Very Low Qrr
• Specified at Operating Conditions




Application

• Reduced RFI and EMI
• Reduced Power Loss in Diode and Switching Transistor
• Higher Frequency Operation
• Reduced Snubbing
• Reduced Parts Count




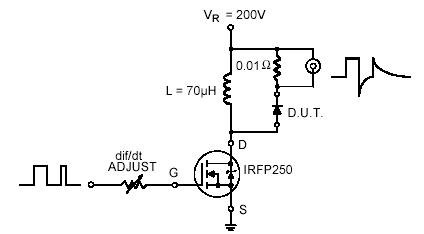

Pinout






Specifications

	Parameters	Max	Units
VRRM	Cathode-to-Anode Voltage	600	V
IF @ TC = 100°C	Continuous Forward Current	8.0	A
IFSM	Single Pulse Forward Current	60	A
IFRM	Peak Repetitive Forward Current	24	A
PD @ TC = 25°C	Maximum Power Dissipation	36	W
PD @ TC = 100°C	Maximum Power Dissipation	14	W
TJ, TSTG	Operating Junction and Storage Temperatures	- 55 to 150	°C

Description

HEXFRED? Ultrafast Soft Recovery Diode, 8 A. International Rectifier's HFA08TB60 is a state of the art ultra fast recovery diode. Employing the latest in epitaxial construction and advanced processing techniques it features a superb combination of characteristics which result in performance which is unsurpassed by any rectifier previously available. With basic ratings of 600 volts and 8 amps continuous current, the HFA08TB60 is especially well suited for use as the companion diode for IGBTs and MOSFETs.

In addition to ultra fast recovery time, the HEXFRED product line features extremely low values of peak recovery current (IRRM) and does not exhibit any tendency to "snap-off" during the tb portion of recovery. The HEXFRED HFA08TB60 features combine to offer designers a rectifier with lower noise and significantly lower switching losses in both the diode and the switching transistor. These HEXFRED advantages can help to significantly reduce snubbing, component count and heatsink sizes.

The HEXFRED HFA08TB60 is ideally suited for applications in power supplies and power conversion systems (such as inverters), motor drives, and many other similar applications where high speed, high efficiency is needed.
