HGTP1N120BN General Description
HGTP1N120BN Maximum Ratings
Collector to Emitter Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . BVCES 1200 V
Collector Current Continuous At TC = 25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IC25 5.3 A
Collector Current Continuous At TC = 110 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .IC110 2.7 A
Collector Current Pulsed (Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ICM 6 A
Gate to Emitter Voltage Continuous. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .VGES ±20 V
Gate to Emitter Voltage Pulsed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. VGEM ±30 V
Switching Safe Operating Area at TJ = 150 (Figure 2) . . . . . . . . . . . . . . . . . .SSOA 6A at 1200V
Power Dissipation Total at TC = 25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PD 60 W
Power Dissipation Derating TC > 25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.476 W/
Forward Voltage Avalanche Energy (Note 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . EAV 10 mJ
Operating and Storage Junction Temperature Range . . . . . . . . . . . . . . . . . TJ, TSTG -55 to 150
Maximum Lead Temperature for Soldering
Leads at 0.063in (1.6mm) from Case for 10s. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TL 300
Package Body for 10s, see Techbrief 334 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Tpkg 260
Short Circuit Withstand Time (Note 3) at VGE = 15V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .tSC 8 µs
Short Circuit Withstand Time (Note 3) at VGE = 13V. . . . . . . . . . . . . . . . . . . . . . . . . . . . .tSC 13 µs
HGTP1N120BN Features
• 5.3A, 1200V, TC = 25
• 1200V Switching SOA Capability
• Typical EOFF. . . . . . . . . . . . . . . . . . . 120µJ at TJ = 150
• Short Circuit Rating
• Low Conduction Loss
• Avalanche Rated
• Temperature Compensating SABER™ Model
Thermal Impedance SPICE Model
www.intersil.com
• Related Literature
- TB334, "Guidelines for Soldering Surface Mount
Components to PC Boards"

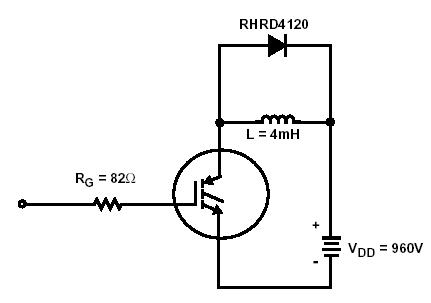

HGTP1N120BN Connection Diagram
