MFG:FAIRCHILD Package Cooled:DIP/SOP D/C:08+
MFG: FAIRCHILD
Package Cooled: DIP/SOP
D/C: 08+
Description: The HGTP5N120BN and the HGT1S5N120BNS are Non-Punch Through (NPT) IGBT designs. They are new members o...

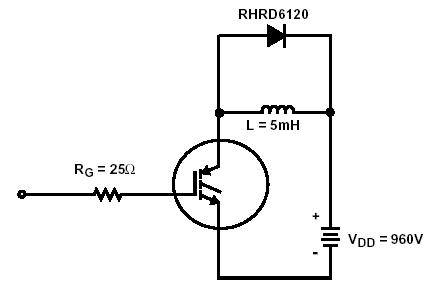

The HGTP5N120BN and the HGT1S5N120BNS are Non-Punch Through (NPT) IGBT designs. They are new members of the MOS gated high voltage switching IGBT family. IGBTs combine the best features of MOSFETs and bipolar transistors. This device has the high input impedance of a MOSFET and the low on-state conduction loss of a bipolar transistor.
The IGBT is ideal for many high voltage switching applications operating at moderate frequencies where low conduction losses are essential, such as: AC and DC motor controls, power supplies and drivers for solenoids, relays and contactors.
Formerly Developmental Type TA49308.
Collector to Emitter Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .BVCES 1200 V
Collector Current Continuous At TC = 25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IC25 21 A
Collector Current Continuous At TC = 110 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IC110 10 A
Collector Current Pulsed (Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ICM 40 A
Gate to Emitter Voltage Continuous. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .VGES ±20 V
Gate to Emitter Voltage Pulsed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VGEM ±30 V
Switching Safe Operating Area at TJ = 150 . . . . . . . . . . . . . . . . . . . . . . SSOA 30A at 1200V
Power Dissipation Total at TC = 25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PD 167 W
Power Dissipation Derating TC > 25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.33 W/
Forward Voltage Avalanche Energy (Note 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . EAV 36 mJ
Operating and Storage Junction Temperature Range . . . . . . . . . . . . . . TJ, TSTG -55 to 150
Maximum Lead Temperature for Soldering
Leads at 0.063in (1.6mm) from case for 10s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TL 300
Package Body for 10s, see Tech Brief 334 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..Tpkg 260
Short Circuit Withstand Time (Note 3) at VGE = 15V. . . . . . . . . . . . . . . . . . . . . . . . . . tSC 8 µs
Short Circuit Withstand Time (Note 3) at VGE = 12V. . . . . . . . . . . . . . . . . . . . . . . . . .tSC 15 µs
HGTP5N120BN
PDF/DataSheet Download
