Product Details

Description



Features:

• Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-Bit
• High Speed Operation . . . . . . . . . . . . . . . . . . . . . 35MHz
(Maximum Conversion Speed)
• Non-Linearity . . . . . . . . . . . . . . . . . Less Than ±1/2 LSB
• Low Glitch
• TTL Compatible Input
• Power Supply
- Single . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +5V
- Dual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±5V
• Low Power Consumption
- +5V Single Power Supply (Typ) . . . . . . . . . . 200mW
- ±5V Dual Power Supply (Typ) . . . . . . . . . . . . 400mW
• Direct Replacement for the Sony CXA1106


Pinout

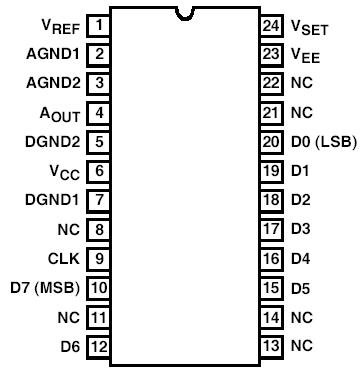

Connection Diagram


Specifications

Supply Voltage VCC - DGND1 . . . . . . . . . . . . . . . . . . .0V to 6V
VEE - AGND1, AGND2 . . . . . . . . . . . . . . . . . . . . . . . . . -6V to 0V
DGND2 - DGND1 . . . . . . . . . . . . . . . . . . . . . . . . . . . .0V to 6V
Digital Input Voltage
VI. . . . . . . . . . . . . . . . . . . . . . .. . DGND1 - 0.3V to VCC + 0.3V
VCLK . . . . . . . . . . . . . . . . . . . . ... DGND1 - 0.3V to VCC + 0.3V
Input Voltage (VSET Pin), VSET . . . . . VEE - 0.3V to VEE + 2.7V
Output Current (VREF Pin), lREF . . . . . . . . . . . . . -5mA to 0mA


Description

The HI1106 is an 8-bit, 35MHz, high-speed D/A converter IC. Summing type current for the upper 2 bits and ladder type resistance for the lower 6 bits, ensures a low power consumption of 200mW (single power supply).

This HI1106 IC is suitable for digital TVs, graphic displays and otherapplications.
