HI1166Y General Description
This is a specification that outlines the mechanical and electrical characteristics for the HI1166Y, 8-bit Flash A/D converter IC, in chip (die) form.
HI1166Y Maximum Ratings
Supply Voltage (AVEE, DVEE) . . . . . . . . . . . . . . . . -7V to +0.5V
Analog Input Voltage (VIN) . . . . . . . . . . . . . . . -2.7V to +0.5V
Reference Input Voltage
VRT, VRB, VRM. . . . . . . . . . . . . . . . . . . . . . . . . -2.7V to +0.5V
|VRT -VRB| . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.5V
Digital Input Voltage
MINV, LINV, CLK, CLK . . . . . . . . . . . . . . . . . . . . . . -4V to +0.5V
|CLK-CLK| . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.7V
VRM Pin Input Current (IVRM) . . . . . . . . . . . . . .-3mA to +3mA
Digital Output Current
(ID0 to ID7, IOR, ID0 to ID7, IOR) . . . . . . . . . . .-30mA to 0mA
Storage Temperature Range (TSTG) . . . . . . . . -65 to +150
HI1166Y Features
• Differential Linearity Error . . . . . . . . . .±0.5 LSB or Less
• Integral Linearity Error. . . . . . . . . . . . . .±0.5 LSB or Less
• Built-In Integral Linearity Compensation Circuit
• Ultra High Speed Operation with Maximum
Conversion Rate of 250 MSPS (Min)
• Low Input Capacitance . . . . . . . . . . . . . . . . . 18pF (Typ)
• Wide Analog Input Bandwidth . . . . . . . . . . . . . 200MHz
(Min. for Full-Scale Input)
• Single Power Supply . . . . . . . . . . . . . . . . . . . . . . . .-5.2V
• Low Power Consumption . . . . . . . . . . . . 1400mW (Typ)
• Low Error Rate
• Capable of Driving 50W Loads
HI1166Y Typical Application
• Spectrum Analyzers
• Radar Systems
• Direct RF Down-Conversion
• Video Digitizing
• Communication Systems
• Digital Oscilloscopes

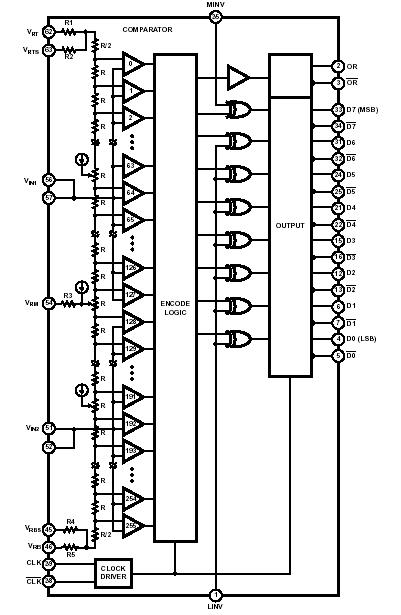

HI1166Y Connection Diagram
