HI1166 General Description
HI1166 Maximum Ratings
Supply Voltage (AVEE, DVEE) . . . . . . . . . . . . . . . . . .7V to +0.5V
Analog Input Voltage (VIN). . . . . . . . . . . . . . . . -2.7V to +0.5V
Reference Input Voltage
VRT, VRB, VRM. . . . . . . . . . . . . . . . . . . . . . . . . . .-2.7V to +0.5V
|VRT -VRB| . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.5V
Digital Input Voltage
MINV, LINV, CLK, CLK . . . . . . . . . . . . . . . . . . . . . .-4V to +0.5V
|CLK-CLK| . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.7V
VRM Pin Input Current (IVRM) . . . . . . . . . . . . . . -3mA to +3mA
Digital Output Current
(ID0 to ID7, IOR, ID0 to ID7, IOR) . . . . . . . . . . . -30mA to 0mA
Temperature Range, TA (Note 5) . . . . . . . . . . . .-20 to 100
Temperature Range,TC . . . . . . . . . . . . . . . . . . . -20 to 125
HI1166 Features
• Differential Linearity Error . . . . . . . . . . ±0.5 LSB or Less
• Integral Linearity Error . . . . . . . . . . . . . ±0.5 LSB or Less
• Built-In Integral Linearity Compensation Circuit
• Ultra High Speed Operation with Maximum
Conversion Rate (Min) . . . . . . . . . . . . . . . . . . . 250 MSPS
• Low Input Capacitance 18pF (Typ)
• Wide Analog Input Bandwidth
(Min for Full Scale Input) . . . . . . . . . . . . . . . . . . . 250MHz
• Single Power Supply . . . . . . . . . . . . . . . . . . . . . . . . -5.2V
• Low Power Consumption . . . . . . . . . . . . . . . . . 1.4W (Typ)
• Low Error Rate
• Capable of Driving 50W Loads
• Evaluation Board Available
• Direct Replacement for Sony CXA1166K
HI1166 Typical Application
• Spectrum Analyzers
• Radar Systems
• Direct RF Down-Conversion
• Video Digitizing
• Communication Systems
• Digital Oscilloscopes

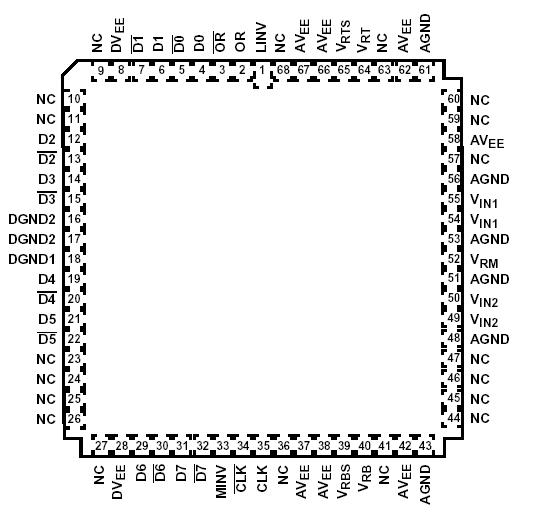

HI1166 Connection Diagram
