Product Details

Description



Features:

• Ultra-High Speed Operation with Maximum
•Conversion Rate. . . . . . . . . . . . . . . . . . . . . . . 140 MSPS
• Low Input Capacitance . . . . . . . . . . . . . . . . . . . . . . .7pF
• Wide Analog Input Bandwidth (Min) . . . . . . . . 200MHz
• Low Power Consumption . . . . . . . . . . . . . . . . . .225mW
• Low Error Rate


Application

• RGB Graphics Processing
• Digital Data Storage Read Channels
• Digital Communications


Pinout

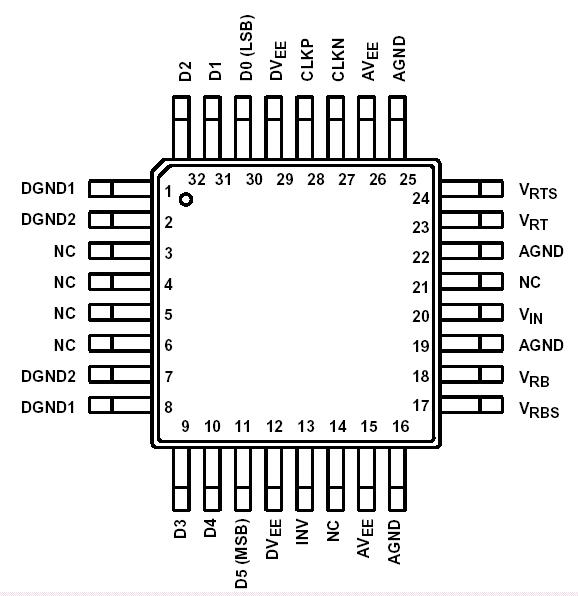

Connection Diagram


Specifications

Supply Voltage (AVEE) . . . . . . . . . . . . . . . . . . . . . . . . -7V to 0.5V
Reference Voltage (VRT, VRB) . . . . . . . . . . . . . . . . . -1.5V to 0.5V
| VRT - VRB | . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.5V
Analog Input Voltage (VIN) . . . . . . . . . . . . . . . . . . . -2.7V to 0.5V
Digital Input Voltage (CLKP, CLKN, INV) . . . . . . . . . . . -4V to 0.5V
| CLKP - CLKN | . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.7V
Digital Output Current (ID0 to ID5) . . . . . . . . . . . . . 30mA to 0mA


Description

HI1826 is a 6-bit, 140 MSPS, flash A/D converter IC capable of digitizing analog signals at the maximum rate of 140 MSPS. The digital input/output level is compatible with the ECL 100K/10KH/10K.
