Part Number: HI3026A
Description: The HI3026A is an 8-bit, high-speed, flash analog-to-digital converter optimized for high speed, low power, and ease of...
- Table of contents:
HI3026A
-
Suppliers
DataSheet
General Description
HI3026A General Description
The HI3026A is an 8-bit, high-speed, flash analog-to-digital converter optimized for high speed, low power, and ease of use. With a 140 MSPS encode rate capability and full-power analog bandwidth of 150MHz, this component is ideal for applications requiring the highest possible dynamic performance.
To minimize system cost and power dissipation, only a +5V power supply is required. The HI3026A's clock input interfaces directly to TTL, ECL, or PECL logic and will operate with singleended inputs. The user may select 16-bit demultiplexed output or 8-bit single-channel digital outputs. The demultiplexed mode interleaves the data through two 8-bit channels at 1/2 the clock rate. Operation in demultiplexed mode reduces the speed and cost of external digital interfaces, while allowing the A/D converter to be clocked to the full 140 MSPS conversion rate.
Fabricated with an advanced bipolar process, the HI3026A is provided in a space-saving 48-lead MQFP surface mount plastic package and is specified over the -20 to 75 temperature range.
HI3026A Maximum Ratings
Supply Voltage
AVCC, DVCC1, DVCC2 . . . . . . . . . . . . . . . . . . . . . . . . -0.5V to 7.0V
DGND3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . -0.5V to 7.0V
DVEE3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -7.0V to 0.5V
DGND3 - DVEE3 . . . . . . . . . . . . . . . . . . . . . . . . . .. . . -0.5V to 7.0V
Analog Input Voltage (VIN) . . . . . . . . . . . . . . . .VRT - 2.7V to AVCC
Reference Input Voltage
VRT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . .2.7V to AVCC
VRB. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VIN - 2.7V to AVCC
|VRT - VRB| . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.5V
Digital Input Voltage
ECL (***/E (Note 2)) . . . . . . . . . . . . . . . . . . . . . . . .DVEE3 to 0.5V
PECL (***/E) . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.5V to DGND3
TTL (***/T, INV) . . . . . . . . . . . . . . . . . . . . . . . . . . -0.5V to DVCC1
Other (SELECT) . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.5V to DVCC1
VID (|***/E - ***N/E| (Note 3)) . . . . . . . . . . . . . . . . . . . . . . . 2.7V
AVCC, DVCC1, DVCC2 . . . . . . . . . . . . . . . . . . . . . . . . -0.5V to 7.0V
DGND3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . -0.5V to 7.0V
DVEE3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -7.0V to 0.5V
DGND3 - DVEE3 . . . . . . . . . . . . . . . . . . . . . . . . . .. . . -0.5V to 7.0V
Analog Input Voltage (VIN) . . . . . . . . . . . . . . . .VRT - 2.7V to AVCC
Reference Input Voltage
VRT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . .2.7V to AVCC
VRB. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VIN - 2.7V to AVCC
|VRT - VRB| . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.5V
Digital Input Voltage
ECL (***/E (Note 2)) . . . . . . . . . . . . . . . . . . . . . . . .DVEE3 to 0.5V
PECL (***/E) . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.5V to DGND3
TTL (***/T, INV) . . . . . . . . . . . . . . . . . . . . . . . . . . -0.5V to DVCC1
Other (SELECT) . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.5V to DVCC1
VID (|***/E - ***N/E| (Note 3)) . . . . . . . . . . . . . . . . . . . . . . . 2.7V
HI3026A Features
• Differential Linearity Error . . . . . . . . . . . . . . . ±0.5 LSB
• Integral Linearity Error . . . . . . . . . . . . . . . . . . ±0.5 LSB
• Integral Linearity Compensation Circuit
• Low Input Capacitance . . . . . . . . . . . . . . . . . . . . . 21pF
• Wide Analog Input Bandwidth . . . . . . . . . . . . . 150MHz
• Low Power Consumption . . . . . . . . . . . . . . . . . 790mW
• Internal 1/2 Frequency Divider Circuit (With Reset Function)
• CLK/2 Clock Output Pin
• Compatible with ECL, PECL and TTL Digital Input Levels
• 1:2 Demultiplexed Output
• Direct Replacement for Sony CXA3026A
• Integral Linearity Error . . . . . . . . . . . . . . . . . . ±0.5 LSB
• Integral Linearity Compensation Circuit
• Low Input Capacitance . . . . . . . . . . . . . . . . . . . . . 21pF
• Wide Analog Input Bandwidth . . . . . . . . . . . . . 150MHz
• Low Power Consumption . . . . . . . . . . . . . . . . . 790mW
• Internal 1/2 Frequency Divider Circuit (With Reset Function)
• CLK/2 Clock Output Pin
• Compatible with ECL, PECL and TTL Digital Input Levels
• 1:2 Demultiplexed Output
• Direct Replacement for Sony CXA3026A
HI3026A Typical Application
• RGB Graphics Processing (LCD, PDP)
• Digital Oscilloscopes
• Digital Communications (QPSK, QAM)
• Magnetic Recording (PRML)
• Digital Oscilloscopes
• Digital Communications (QPSK, QAM)
• Magnetic Recording (PRML)

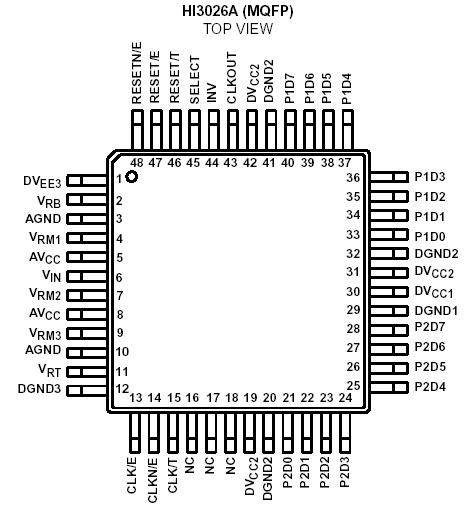

HI3026A Connection Diagram
HI3026A
