HI5805

Features:

• Sampling Rate . . . . . . . . . . . . . . . . . . . . . . . . . . . .5MSPS
• Low Power
• Internal Sample and Hold
• Fully Differential Architecture
• Full Power Input Bandwidth . . . . . . . . . . . . . . . . . 100MHz
• Low Distortion
• Internal Voltage Reference
• TTL/CMOS Compatible Digital I/O
• Digital Outputs . . . . . . . . . . . . . . . . . . . . . . . . . 5V to 3.0V




Application

• Digital Communication Systems
• Undersampling Digital IF
• Document Scanners
• Additional Reference Documents
- AN9214 Using Intersil High Speed A/D Converters
- AN9707 Using the HI5805EVAL1 Evaluation Board

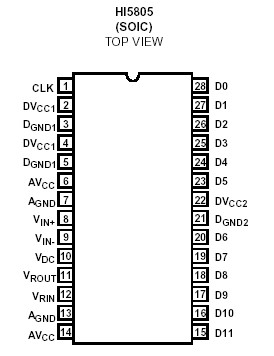

Pinout






Specifications

Supply Voltage, AV_CC or DV_CC to A_GND or D_GND . . . . . . . . . . .+6.0V
DGND to AGND. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.3V
Digital I/O Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .D_GND to DV_CC
Analog I/O Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A_GND to AV_CC




Description

The HI5805 is a monolithic, 12-bit, Analog-to-Digital Converter fabricated in Intersil's HBC10 BiCMOS process. It is designed for high speed, high resolution applications where wide bandwidth and low power consumption are essential.

The HI5805 is designed in a fully differential pipelined architecture with a front end differential-in-differential-out sample-and-hold (S/H). The HI5805 has excellent dynamic performane while consuming 300mW power at 5MSPS.The 100MHz full power input bandwidth is ideal for communication systems and document scanner applications. Data output latches are provided which present valid data to the output bus with a latency of 3 clock cycles. The digital outputs have a separate supply pin which can be powered from a 3.0V to 5.0V supply.
