HIP0084

Features:

• Low Side Power MOSFET Output Drivers
       - Output Voltage Clamp (Typ) . . . . . . . . . . . . . . . . 80V
       - Maximum Output Current . . . . . . . . . . . . . . . . 5A/2A
       - Output rDS(ON) (TJ = 150) (Max) . . . . .0.57W/0.62W
• Controlled Slew Rate Switching (HIP0084)
• Single Pulse Energy Rating . . . . . . . . . . . . . . . . . 70mJ
• Programmable Output Over Current Shutdown Threshold
       - Bit Select 2A or 5A on Outputs 3 and 4
• Output Protection
       - Output Over Current Shutdown
       - Output Over Voltage Clamp
       - Over Temperature Diagnostic Feedback
• Diagnostics for Shorts, Opens and Over Temperature
• Synchronous Serial Interface with
       - 22-Bit Serial Diagnostic Register
       - SPI Compatible Interface
• Single 5V Supply Operation with CMOS Logic Inputs
• Supply Current, ICC, Full Load (Typ) . . . . . . . . . <10mA
• LowqJC Power SIP Packages
       SIP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3oC/W
       PSOP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2oC/W
• -40 to 125 Operating Temperature


Application

• Drivers For
• System Use
       - Solenoids - Injectors - Automotive
       - Relays - Steppers - Appliances
       - Power Output - Motors - Industrial
       - Lamps - Displays - Robotics

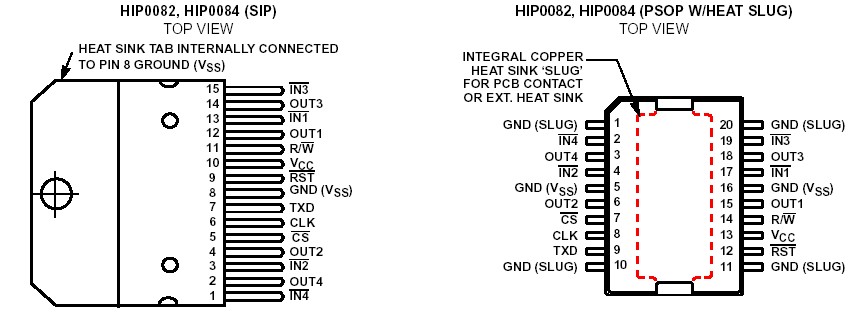

Pinout




Specifications

Supply Voltage (Logic and Control), V_CC. . . . . . . . . . . . -0.3V to 7V
Power MOSFET Drain Voltage, V_O (Note 3) . . . . . . .. -0.7 to V_CLAMP
Output Clamp Energy, E_OK (See Note 5). . . . . . . . . . . . . . . . . 70mJ
Input Voltage (Logic and Driver Inputs), V_IN. . . .-0.5V to V_CC +0.5V
Maximum Output Current, Outputs 1 and 2 . . . . . . . . . . . . . . . .+2A
Maximum Output Current, Outputs 3 and 4 . . . . . . . . . . . . . . . .+5A
Maximum Total Output Current, All Outputs ON. . . . . . . . . . . . ..+8A
Maximum Peak Output Current, IO(MAX), (Note 4) . . . . . -5A to ISC


Description

The HIP0082 and HIP0084 Quad Power Drivers contain four individually protected NDMOS transistor switches to drive inductive and resistive loads such as: fuel injectors, relays, solenoids, etc. The outputs are low-side switches driven by active-low CMOS logic inputs. Each output of HIP0082 and HIP0084 is protected against excessive current due to a short-circuit. Internal drain-to-gate zener diodes provide output clamping for over voltage. An integrated charge pump allows operation from a single 5V logic supply. Diagnostic circuits provide ground short (SG), supply short (SC) and open load (OL) detection for each of the four output stages and indicate over temperature.

Diagnostic information of HIP0082 and HIP0084 may be read via a synchronous serial interface. Six bits of write/store data sets a long or short OL fault delay time for each output and sets Outputs 3 and 4 to a 2A or 5A current shutdown threshold. The HIP0084 is specified with controlled slew rate switching.

Both HIP0082 and HIP0084 types are fabricated in a Power BiMOS IC process and are intended for use in automotive and other applications with a wide range of temperature and electrical stress. They are particularly suited for driving high-current inductive loads requiring high breakdown voltage and high output current. Both types available in the 15 lead Power SIP or 20 lead PSOP packages with low thermal resistance for high power applications.
