Part Number: HM5118165
Description: The Hitachi HM5118165 is a CMOS dynamic RAM organized as 1,048,576-word ´ 16-bit. It employs the most advanced 0....
- Table of contents:
HM5118165
-
Suppliers
DataSheet
General Description
HM5118165 General Description
The Hitachi HM5118165 is a CMOS dynamic RAM organized as 1,048,576-word ´ 16-bit. It employs the most advanced 0.5 mm CMOS technology for high performance and low power. The HM5118165 offers Extended Data Out (EDO) Page Mode as a high speed access mode. It is packaged in 42-pin plastic SOJ and 50-pin plastic TSOP II.
HM5118165 Maximum Ratings
| Parameter | Symbol | Value | Unit |
| Terminal voltage on any pin relative to VSS | VT | 1.0 to +7.0 | V |
| Power supply voltage relative to VSS | VCC | 1.0 to +7.0 | V |
| Short circuit output current | Iout | 50 | mA |
| Power dissipation | PT | 1.0 | W |
| Operating temperature | Topr | 0 to +70 | |
| Storage temperature | Tstg | 55 to +125 |
HM5118165 Features
· Single 5 V (±10%)
· Access time : 50 ns/60 ns/70 ns (max)
· Power dissipation
- Active mode : 1045 mW/935 mW/825 mW (max)
- Standby mode : 11 mW (max)
: 0.83 mW (max) (L-version)
· EDO page mode capability
· Refresh cycles
- 1024 refresh cycles : 16 ms
: 128 ms (L-version)
· 4 variations of refresh
- RAS-only refresh
- CAS-before-RAS refresh
- Hidden refresh
- Self refresh (L-version)
· 2CAS-byte control
· Battery backup operation (L-version)
· Access time : 50 ns/60 ns/70 ns (max)
· Power dissipation
- Active mode : 1045 mW/935 mW/825 mW (max)
- Standby mode : 11 mW (max)
: 0.83 mW (max) (L-version)
· EDO page mode capability
· Refresh cycles
- 1024 refresh cycles : 16 ms
: 128 ms (L-version)
· 4 variations of refresh
- RAS-only refresh
- CAS-before-RAS refresh
- Hidden refresh
- Self refresh (L-version)
· 2CAS-byte control
· Battery backup operation (L-version)

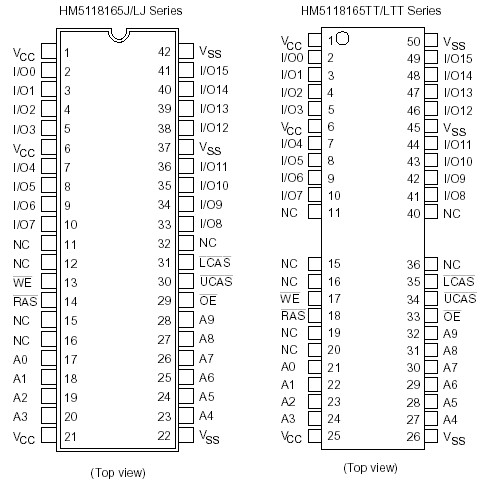

HM5118165 Connection Diagram
HM5118165
PDF/DataSheet Download
- Datasheet: HM5118165
- File Size: 344770 KB
- Manufacturer: HITACHI [Hitachi Semiconductor]
- Click here to Download
