HM51W16165
-
Suppliers
DataSheet
General Description
HM51W16165 General Description
The Hitachi HM51W16165 Series, HM51W18165 Series are CMOS dynamic RAMs organized as 1,048,576-word ´ 16-bit. They employ the most advanced CMOS technology for high performance and low power. HM51W16165 Series, HM51W18165 Series offer Extended Data Out (EDO) Page Mode as a high speed access mode. They have package variations of standard 400-mil 42-pin plastic SOJ and 400-mil 50-pin plastic TSOP.
HM51W16165 Maximum Ratings
| Parameter | Symbol | Value | Unit |
| Terminal voltage on any pin relative to VSS | VT | 0.5 to VCC + 0.5 ( 4.6 V (max)) | V |
| Power supply voltage relative to VSS | VCC | 0.5 to +4.6 | V |
| Short circuit output current | Iout | 50 | mA |
| Power dissipation | PT | 1.0 | W |
| Operating temperature | Topr | 0 to +70 | |
| Storage temperature | Tstg | 55 to +125 |
HM51W16165 Features
· Single 3.3 V (±0.3 V)
· Access time: 50 ns/60 ns/70 ns (max)
· Power dissipation
- Active mode : 396 mW/360mW/324 mW (max) (HM51W16165 Series)
: 684 mW /612 mW /540 mW (max) (HM51W18165 Series)
- Standby mode : 7.2 mW (max)
: 0.54 mW (max) (L-version)
· EDO page mode capability
· Refresh cycles
- 4096 refresh cycles : 64 ms (HM51W16165 Series)
: 128 ms (L-version)
- 1024 refresh cycles : 16 ms (HM51W18165 Series)
: 128 ms (L-version)
· 4 variations of refresh
- RAS-only refresh
- CAS-before-RAS refresh
- Hidden refresh
- Self refresh (L-version)
· 2CAS-byte control
· Battery backup operation (L-version)
· Access time: 50 ns/60 ns/70 ns (max)
· Power dissipation
- Active mode : 396 mW/360mW/324 mW (max) (HM51W16165 Series)
: 684 mW /612 mW /540 mW (max) (HM51W18165 Series)
- Standby mode : 7.2 mW (max)
: 0.54 mW (max) (L-version)
· EDO page mode capability
· Refresh cycles
- 4096 refresh cycles : 64 ms (HM51W16165 Series)
: 128 ms (L-version)
- 1024 refresh cycles : 16 ms (HM51W18165 Series)
: 128 ms (L-version)
· 4 variations of refresh
- RAS-only refresh
- CAS-before-RAS refresh
- Hidden refresh
- Self refresh (L-version)
· 2CAS-byte control
· Battery backup operation (L-version)

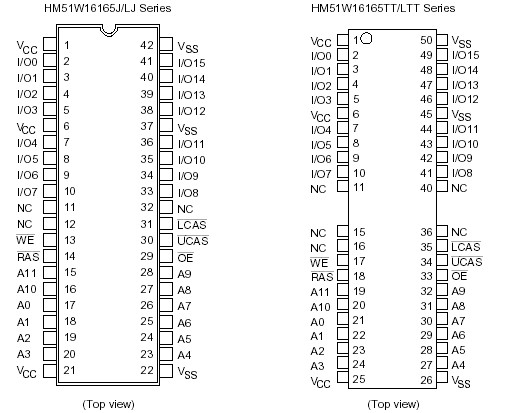

HM51W16165 Connection Diagram
HM51W16165
PDF/DataSheet Download
- Datasheet: HM51W16165
- File Size: 472378 KB
- Manufacturer: HITACHI [Hitachi Semiconductor]
- Click here to Download
