Part Number: HM51W17805
Description: The Hitachi HM51W17805 is a CMOS dynamic RAM organized 2,097,152-word × 8-bi...
- Table of contents:
HM51W17805
-
Suppliers
DataSheet
General Description
HM51W17805 General Description
The Hitachi HM51W17805 is a CMOS dynamic RAM organized 2,097,152-word × 8-bit. It employs the most advanced CMOS technology for high performance and low power. The HM51W17805 offers Extended Data Out (EDO) Page Mode as a high speed access mode. Multiplexed address input permits the HM51W17805 to be packaged in standard 28-pin plastic SOJ and 28-pin TSOP.
HM51W17805 Maximum Ratings
| Parameter | Symbol | Value | Unit |
| Voltage on any pin relative to VSS | VT | 0.5 to VCC + 0.5 ( 4.6 V (max)) | V |
| Supply voltage relative to VSS | VCC | 0.5 to +4.6 | V |
| Short circuit output current | Iout | 50 | mA |
| Power dissipation | PT | 1.0 | W |
| Operating temperature | Topr | 0 to +70 | |
| Storage temperature | Tstg | 55 to +125 |
HM51W17805 Features
• Single 3.3 V (±0.3 V)
• Access time: 50 ns/60 ns/70 ns (max)
• Power dissipation
- Active mode: 396 mW/360 mW/324 mW (max)
- Standby mode : 7.2 mW (max)
: 0.54 mW (max) (L-version)
• EDO page mode capability
• Long refresh period
- 2048 refresh cycles : 32 ms
: 128 ms (L-version)
• 4 variations of refresh
- RAS-only refresh
- CAS-before-RAS refresh
- Hidden refresh
- Self refresh (L-version)
• Battery backup operation (L-version)
• Access time: 50 ns/60 ns/70 ns (max)
• Power dissipation
- Active mode: 396 mW/360 mW/324 mW (max)
- Standby mode : 7.2 mW (max)
: 0.54 mW (max) (L-version)
• EDO page mode capability
• Long refresh period
- 2048 refresh cycles : 32 ms
: 128 ms (L-version)
• 4 variations of refresh
- RAS-only refresh
- CAS-before-RAS refresh
- Hidden refresh
- Self refresh (L-version)
• Battery backup operation (L-version)

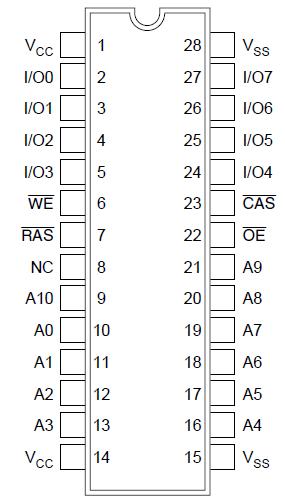

HM51W17805 Connection Diagram
