HM51W18160A

Features: • Single 3.3 V (±0.3 V)• High speed-Access time: 60 ns/70 ns/80 ns (max)• Low power dissipation-Active mode : 360 mW/324 mW/288 mW (max) (HM51W16160A Series): 612 mW/540 mW/468 mW (max) (HM51W18160A Series)-Standby mode : 7.2 mW (max): 0.54 mW (max) (L-version)• F...

product image

HM51W18160A Picture
See larger image
SeekIC No. : 004363409 Detail

HM51W18160A: Features: • Single 3.3 V (±0.3 V)• High speed-Access time: 60 ns/70 ns/80 ns (max)• Low power dissipation-Active mode : 360 mW/324 mW/288 mW (max) (HM51W16160A Series): 612 mW/540 ...

HM51W18160A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HM51W18160A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/3

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Single 3.3 V (±0.3 V)
• High speed
-Access time: 60 ns/70 ns/80 ns (max)
• Low power dissipation
- Active mode : 360 mW/324 mW/288 mW (max) (HM51W16160A Series)
: 612 mW/540 mW/468 mW (max) (HM51W18160A Series)
- Standby mode : 7.2 mW (max)
: 0.54 mW (max) (L-version)
• Fast page mode capability
• Long refresh period
- 4096 refresh cycles : 64 ms (HM51W16160A Series)
: 128 ms (L-version)
- 1024 refresh cycles : 16 ms (HM51W18160A Series)
: 128 ms (L-version)

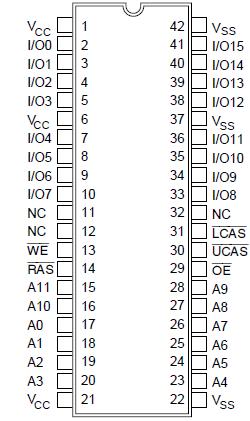

Pinout

Connection Diagram


Specifications

Parameter Symbol Value Unit
Voltage on any pin relative to VSS VT 0.5 to VCC + 0.5 ( 4.6 V (max)) V
Supply voltage relative to VSS VCC 0.5 to +4.6 V
Short circuit output current Iout 50 mA
Power dissipation PT 1.0 W
Operating temperature Topr 0 to +70
Storage temperature Tstg 55 to +125



Description

The Hitachi HM51W16160A Series, HM51W18160A Series are CMOS dynamic RAMs organized as 1,048,576-word × 16-bit. They employ the most advanced CMOS technology for high performance and low power. The HM51W16160A Series, HM51W18160A Series offer Fast Page Mode as a high speed access mode. They have package variations of 42-pin plastic SOJ and 50-pin plastic TSOP II.
